M230-002PD-V5-BVA-3R | Kele | Pressure Components

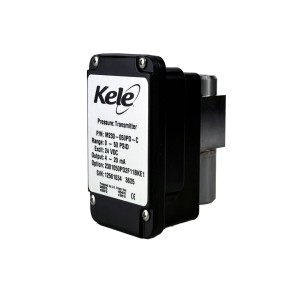

Kele Brand Model M230 Wet-Wet Differential Pressure Transmitter, ±0.25%, 0-2 PSID, 0-5 VDC
Brand:Kele
MPN:M230-002PD-V5-BVA-3R
SKU:M230002PDV5BV3R
product specifications
Measurement
PSI
Media Compatibility
Liquid,Gas
Weight
2
Range
±10 psi
Type
Fixed
Accuracy
0.25%
Output
0 - 5 VDC
Enclosure Rating
NEMA 3R
Approvals
CE, RoHS
Connections
1/4 in NPT
Wetted Materials
17-4 Stainless Steel
Supply Voltage (Nominal)
24 VDC
Direction
Uni-Directional
Scale
Standard
product series specifications
Supply Voltage:
Current Output: 9-30 VDC @ 20 mA
Voltage Output: 5V = 9-30 VDC, 10V = 13 to 30 VDC @ 10 mA
Accuracy: ±0.25% Full scale
Signal Output (Volts,Current): 4-20mA @ 1KΩ
Sensor Type: Capacitance sensor
Adjustments: Zero & Span trim POTs
Overpressure (Burst): 350 psig (2413 kPa) High port / 250 psig (1723 kPa) Low port
Operating Temperature: 0° to 175°F (-18° to 80°C)
Compensated Temp Range: 30° to 150°F (-1° to 65°C)
Operating Humidity: 10 to 95% Non-condensing
Wetted Parts: 17-4 stainless steel w/Viton® & Silicon seals
Media Compatibility: Liquid/Gasses compatible w/17-4 SS
Process Connection: ¼" 18 NPT
Wiring Terminations: Exposed, 3 terminals, 16 to 22 AWG
Mounting: L-Bracket w/2, 0.156” holes for #6 screws
Enclosure Rating: NEMA 4, (IP65)
Dimensions: 7.05"W x 6.25"H x 2.16"D, (17.9 x 15.9 x 5.5 cm)
Weight: 0.94 lb (0.41 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- 0.25% accuracy
- NEMA 4 (IP65) protection
- Fast Response Times
- Gas & Liquid Compatible
- High proof pressure
- Current or voltage outputs
- Mounting bracket included
more information & related documents
Series Description
<p>The Kele M230 Differential Pressure Transmitter provides highly accurate differential pressure measurement using capacitive sensing technology to generate a linear electronic signal proportional to pressure. The transmitter measures unidirectional differential pressure up to 100 psi and bidirectional differential pressure up to 50 psi. With stainless steel wetted parts and durable elastomer seals, the M230 is suitable for use with both liquids and gases. Its NEMA 4 (IP65) enclosure protects internal electronics from dust and moisture, making it well suited for demanding industrial and HVAC environments.</p>
Kele Description

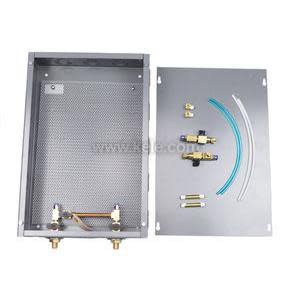

DP XMTR 0-2PSI 0-5VDC W/ BVA 3R
Manufacturer
Kele
Related Documents
Setra 230 Manual Install Manual
