M230-050PD-V10 | Kele | Pressure Components

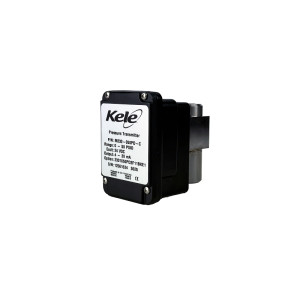

Kele Brand Model M230 Wet-Wet Differential Pressure Transmitter, ±0.25%, 0-50 PSID, 0-10 VDC

Brand:Kele

MPN:M230-050PD-V10

SKU:M230-050PD-V10

List Price:

$1,599.00

Today's Price:

$831.48

product datasheet

catalog page

product specifications

Direction

Uni-Directional

Measurement

PSID

Media Compatibility

Liquid,Gas

Range

±50 psi

Type

Adjustable

Accuracy

0.25%

Output

0 - 10 VDC

Approvals

CE, RoHS

Connections

1/4 in NPT

Wetted Materials

17-4 Stainless Steel

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage:

Current Output: 9-30 VDC @ 20 mA

Voltage Output: 5V = 9-30 VDC, 10V = 13 to 30 VDC @ 10 mA

Accuracy: ±0.25% Full scale

Signal Output (Volts,Current): 4-20mA @ 1KΩ

Sensor Type: Capacitance sensor

Adjustments: Zero & Span trim POTs

Overpressure (Burst): 350 psig (2413 kPa) High port / 250 psig (1723 kPa) Low port

Operating Temperature: 0° to 175°F (-18° to 80°C)

Compensated Temp Range: 30° to 150°F (-1° to 65°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: 17-4 stainless steel w/Viton® & Silicon seals

Media Compatibility: Liquid/Gasses compatible w/17-4 SS

Process Connection: ¼" 18 NPT

Wiring Terminations: Exposed, 3 terminals, 16 to 22 AWG

Mounting: L-Bracket w/2, 0.156” holes for #6 screws

Enclosure Rating: NEMA 4, (IP65)

Dimensions: 7.05"W x 6.25"H x 2.16"D, (17.9 x 15.9 x 5.5 cm)

Weight: 0.94 lb (0.41 Kg)

Approvals: CE, RoHS

Warranty: 1 year

product series features

0.25% accuracy
NEMA 4 (IP65) protection
Fast Response Times
Gas & Liquid Compatible
High proof pressure
Current or voltage outputs
Mounting bracket included

more information & related documents

Series Description

<p>The Kele M230 Differential Pressure Transmitter provides highly accurate differential pressure measurement using capacitive sensing technology to generate a linear electronic signal proportional to pressure. The transmitter measures unidirectional differential pressure up to 100 psi and bidirectional differential pressure up to 50 psi. With stainless steel wetted parts and durable elastomer seals, the M230 is suitable for use with both liquids and gases. Its NEMA 4 (IP65) enclosure protects internal  electronics from dust and moisture, making it well suited for demanding industrial and HVAC environments.</p>

Kele Description

DP TRANSMITTER 0-50PSI 0-10VDC
