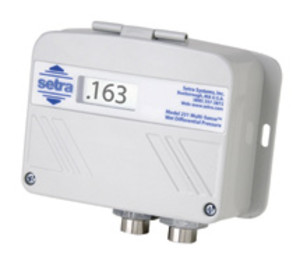

230424 | Setra | Pressure

Supply Voltage: 12-30 VDC @ 25 mA

Voltage output: 12-30 VDC @ 10 mA, 18 to 28 VAC @ .3 VA

Accuracy: ±1.0% Range A-C, ±2.0% Range D

Signal Output (Volts,Current): 4-20 mA @ 5KO or (0,1)-5V @ >5KO (Selectable)

Sensor Type: Piezoresistive

Adjustments: Push Button or remote contact Zero

Display: Opt-LCD, 4 digits, 0.526? high, WC/kPa switch

Overpressure (Burst): MS1=2000 psid (13,789 kPa), MS2=4000 psid (27,579 kPa), MS3=10000 psid (68,947 kPa)

Max Operating Pressure (Proof): MS1=110 psid (758 kPa), MS2=220 psid (1516 kPa), MS3=550 psid (3792 kPa)

Operating Temperature: -4° to 185? (-20° to 85?)

Compensated Temp Range: 32° to 130? (0° to 54?)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: 17-4 stainless steel

Media Compatibility: Liquid/Gasses compatible w/17-4 SS

Process Connection: 1/4? 18 NPT

Wiring Terminations: Terminals 2-(4-20mA), 3-(Volts)

Mounting: Tabs with 2, 0.156? holes for #6 screws

Enclosure Rating: Powder coated aluminum, NEMA 4, w/o display

Dimensions: 5.1?W x 6.0?H x 2.0?D, (13 x 15.2 x 5.1 cm)

Weight: 1.5 lb (0.68 Kg)

Approvals: CE, RoHS

Warranty: 1 year
