2301025PD3V11A | Setra | Pressure Components

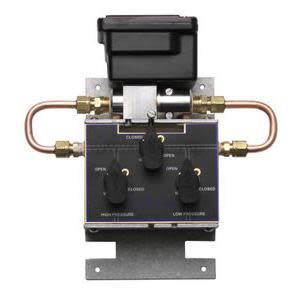

Setra Model 230 Wet-Wet Differential Pressure Transmitter, 0-25 psid, 3-V Manifold, 4-20 mA, Buna-N Bleed Screw Seals

Brand:Setra

MPN:2301025PD3V11A

SKU:2301025PD3V11A

List Price:

$2,518.88

Today's Price:

$1,309.82

Lead time of > 15 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSID

Media Compatibility

Liquid,Gas

Range

±50 psi

Type

Adjustable

Accuracy

0.25%

Manifold

3 Valve

Output

4 - 20 mA

Enclosure Rating

NEMA 4

Approvals

CE, RoHS

Bypass Valves

3 Valve Bypass

Connections

1/4 in NPT

Wetted Materials

17-4 Stainless Steel

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage:

Current Output: 9-30 VDC @ 20 mA

Voltage Output: 5V = 9-30 VDC, 10V = 13 to 30 VDC @ 10 mA

Accuracy: ±0.25% Full scale

Signal Output (Volts,Current): 4-20mA @ 1KΩ

Sensor Type: Capacitance sensor

Adjustments: Zero & Span trim POTs

Overpressure (Burst): 350 psig (2413 kPa) High port / 250 psig (1723 kPa) Low port

Operating Temperature: 0° to 175°F (-18° to 80°C)

Compensated Temp Range: 30° to 150°F (-1° to 65°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: 17-4 stainless steel w/Viton® & Silicon seals

Media Compatibility: Liquid/Gasses compatible w/17-4 SS

Process Connection: ¼" 18 NPT

Wiring Terminations: Exposed, 3 terminals, 16 to 22 AWG

Mounting: L-Bracket w/2, 0.156” holes for #6 screws

Enclosure Rating: NEMA 4, (IP65)

Dimensions: 7.05"W x 6.25"H x 2.16"D, (17.9 x 15.9 x 5.5 cm)

Weight: 0.94 lb (0.41 Kg)

Approvals: CE, RoHs

Warranty: 1 year

product series features

±0.25% FS Accuracy
Available to 1 PSID with 350 PSI Line Pressure
No Liquid Fill Diaphragm
NEMA 4 Rated Housing
Low Line Pressure Effect
Fast Response Time
Gas & Liquid Compatible

more information & related documents

Series Description

The Setra Model 230 provides highly accurate differential pressure measurement for wet-to-wet applications. Its single-diaphragm design measures true differential pressure without being affected by line pressure, delivering ±0.25% full-scale accuracy—superior to systems that calculate differential pressure using two separate sensors. An all stainless steel capacitive sensor ensures fast response, excellent linearity, and stable analog output across a wide temperature range. For simplified installation and maintenance, the Model 230 is available with an optional 3- or 5-valve machined brass manifold, reducing installation time while minimizing the risk of internal leaks.

Kele Description

DP TRANS WET 0-25 PSID 3VAL 4-20MA BUNA-N

Manufacturer

Setra
