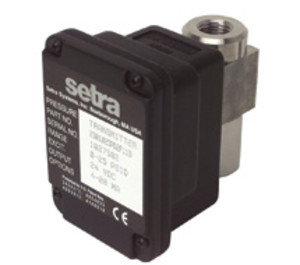

* product family image displayed

2301001PB2F2DB | Setra | Pressure

DP TRANS WET +/- 1 PSID 1/4" 0.05-5.05 VDC




List Price:


Today's Price:


Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

Supply Voltage

Current Output

9-30 VDC @ 20 mA

Voltage Output

5V= 9-30 VDC, 10V=13 to 30 VDC @ 10 mA


±0.25% Full scale

Signal Output (Volts,Current)

4-20mA @ 1KΩ

Sensor Type

Capacitance sensor


Zero & Span trim POTs

Overpressure (Burst)

350 psig (2413 kPa) High port / 250 psig (1723 kPa) Low port

Operating Temperature

0° to 175℉ (-18° to 80℃)

Compensated Temp Range

30° to 150℉ (-1° to 65℃)

Operating Humidity

10 to 95% Non-condensing

Wetted Parts

17-4 stainless steel w/Viton® & Silicon seals

Media Compatibility

Liquid/Gasses compatible w/17-4 SS

Process Connection

1/4″ 18 NPT

Wiring Terminations

Exposed, 3 terminals, 16 to 22 AWG


L-Bracket w/2, 0.156″ holes for #6 screws

Enclosure Rating

NEMA 4, (IP65)


7.05″W x 6.25″H x 2.16″D, (17.9 x 15.9 x 5.5 cm)


0.94 lb (0.41 Kg)




1 year

product family features

  • 0.25% accuracy
  • NEMA 4 (IP65) protection
  • Stainless steel wetted parts
  • Elastomer seals
  • High proof pressure
  • Current or voltage outputs
  • Mounting bracket included

more information & related documents

Family Description

The Setra Model M230 Differential Pressure Transmitter is a highly accurate differential pressure transmitter that incorporates a capacitive technology to produce a linear electronic signal proportional to the differential pressure. It will measure differential pressure in unidirectional applications as much as 100 psi and bidirectional applications as much as 50 psi. The stainless steel wetted parts and elastomer seals make this unit ideal for both liquids and gases. The NEMA 4 (IP65) case keeps the internal electronics protected from the environment.

Kele Description

DP TRANS WET +/- 1 PSID 1/4" 0.05-5.05 VDC
