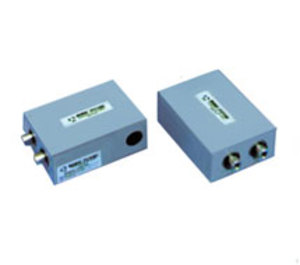

* product series image displayed

PR-282-2-3-A-1-2-B | MAMAC Systems | Pressure Components

WET-WET DIFF PRESS XMTR, FIXED, +/-1.00%, 0-50 PSID, 0-5 VDC, NO REM SNSR, LCD

Brand:MAMAC Systems

MPN:PR-282-2-3-A-1-2-B

SKU:PR-282-2-3-A-1-2-B

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Direction

Bi-Directional

Media Compatibility

Liquid,Gas

Range

±50 psi

Type

Fixed

Output

0 - 5 VDC

Approvals

CE, RoHS

Connections

1/8 in NPT

Wetted Materials

316 Stainless Steel

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 12-40 VDC @ 25 mA

Current output: 12-40 VDC @ 10 mA, 12 to 35 VAC @ 0.3 VA

Accuracy: ±1.0% Full scale (Linearity, Hysteresis, stability & Repeatability)

Signal Output (Volts,Current): 0-5V @ >1KΩ or 0-10V @ >1KΩ, 4-20mA @ <600Ω

Sensor Type: Piezoresistive silicon

Adjustments: Zero & Span trim POTs

Overpressure: (Burst) 300% of range

Max Operating Pressure: (Proof) 500% of range

Operating Temperature: 0° to 180°F (-18° to 82°C)

Compensated Temp Range: 0° to 180°F (-18° to 82°C)

Operating Humidity: 10 to 90% Non-condensing

Wetted Parts: 316 stainless steel

Media Compatibility: Liquid/Gasses compatible w/316 SS

Process Connection: 1/8" FNPT

Wiring Terminations: Removable Terminals 2-(4-20mA), 3-(volts), 12 AWG max

Mounting: Three Internal 0.188" holes for #8 screws

Enclosure Rating: Painted steel 16 AWG, NEMA 1

Dimensions: 5.88"W x 3.5"H x 2.0"D, (14.9 x 8.9 x 5.1 cm)

Weight: 1.7 lb (0.75 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

100% solid state fused silicon pressure sensor
Rugged, leak-proof stainless steel monolithic pressure cavity with no welds, o-rings, or seams/bonds
NIST traceable calibration
Rugged NEMA-1 (IP-30) enclosure
Short circuit and reverse polarity protected
Conforms to EMC and RoHS standards

more information & related documents

Series Description

The MAMAC Systems Model PR282 Wet to Wet Differential Pressure Transmitter incorporates sophisticated integrated circuits and new fused silicon monolithic cavity pressure sensors to not only provide a high level, fully conditioned and temperature compensated output, but also to offer up to six (6) pressure ranges. The stainless steel monolithic pressure cavity not only provides media compatibility for most of the applications, but also offers a leakproof solution for today's environmentally conscious customers. Three industry standard output versions are available: 4-20 mA 2-wire loop or 0-5 VDC/0-10 VDC. A wide 12-40 VDC or 12-35 VAC unregulated supply voltage and a broad 0 degrees F - 180 degrees F compensated temperature range ensures compatibility to most of the applications. A rugged NEMA-1 (IP-30) enclosure, fully temperature compensated NIST traceable accuracy and a liberal five year warranty are some of the features which make the Model PR282 the industry's most reliable, rugged, and economical pressure sensor.

Kele Description

WET-WET DIFF PRESS XMTR, FIXED, +/-1.00%, 0-50 PSID, 0-5 VDC, NO REM SNSR, LCD
