231G-MS2-2FD-BVA5

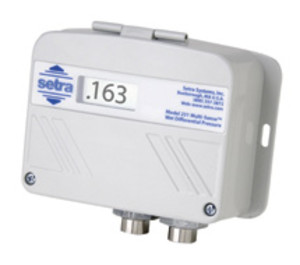

* product family image displayed

231G-MS2-2FD-BVA5 | Kele | Pressure

WET-WET DIFF PRESS XMTER (231G-MS2-2FD) + 5 VALVE BYPASS (BVA-5-231G)

Manufacturer:Kele

MPN:231G-MS2-2FD-BVA5

SKU:231G-MS2-2FD-BVA5

List Price:

1,688.10

Today's Price:

945.34



USD
Availability: Usually Ships in Less Than 15 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

Current output

12-30 VDC @ 25 mA

Voltage output

12-30 VDC @ 10 mA, 18 to 28 VAC @ .3 VA

Accuracy

±1.0% Range A-C, ±2.0% Range D

Signal Output (Volts,Current)

4-20 mA @ 5KΩ or (0,1)-5V @ >5KΩ (Selectable)

Sensor Type

Piezoresistive

Adjustments

Push Button or remote contact Zero

Display

Opt-LCD, 4 digits, 0.526″ high, WC/kPa switch

Overpressure (Burst)

MS1=2000 psid (13,789 kPa), MS2=4000 psid (27,579 kPa), MS3=10000 psid (68,947 kPa)

Max Operating Pressure (Proof)

MS1=110 psid (758 kPa), MS2=220 psid (1516 kPa), MS3=550 psid (3792 kPa)

Operating Temperature

-4° to 185℉ (-20° to 85℃)

Compensated Temp Range

32° to 130℉ (0° to 54℃)

Operating Humidity

10 to 95% Non-condensing

Wetted Parts

17-4 stainless steel

Media Compatibility

Liquid/Gasses compatible w/17-4 SS

Process Connection

1/4″ 18 NPT

Wiring Terminations

Terminals 2-(4-20mA), 3-(Volts)

Mounting

Tabs with 2 , 0.156″ holes for #6 screws

Enclosure Rating

Powder coated aluminum, NEMA 4, w/o display

Dimensions

5.1″W x 6.0″H x 2.0″D, (13 x 15.2 x 5.1 cm)

Weight

1.5 lb (0.68 Kg)

Approvals

CE, RoHS

Warranty

1 year

product family features

  • Field selectable ranges and outputs
  • Field accessible pushbutton zero and remote zero
  • Field selectable port swap
  • True 4-20 mA output, and choice of VDC outputs
  • Hinged cover
  • Heavy duty aluminum NEMA 4 enclosure
  • Optional LCD display
  • RoHS compliant

more information & related documents

Family Description

The 231 Series Multi-Range Differential Pressure Transmitter is ideal for monitoring pumps and load differential pressures in HVAC applications, Building Automation Systems, BAS, and processes where local indication is needed. The design of these differential pressure transmitters provides users with field accessible ranging, choice of outputs, and field zero adjustment.

Kele Description

WET-WET DIFF PRESS XMTER (231G-MS2-2FD) + 5 VALVE BYPASS (BVA-5-231G)

Manufacturer

Kele

Related Documents
