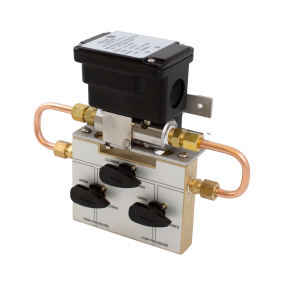

DP110005U3V3V | Johnson Controls | Pressure Components

DPT, WET-TO-WET, 0 PSID TO 5 PSID, UNIDIRECTIONAL, 3-VALVE MANIFOLD, 0.05 VDC TO 10.05 VDC

Brand:Johnson Controls

MPN:DP110005U3V3V

SKU:DP110005U3V3V

List Price:

$2,264.00

Today's Price:

$1,177.28

Lead time of 5 days. Chat with Kele experts now

product specifications

Range

0 - 5 psid

Type

Undirectional

Output

0 - 10 VDC

product series specifications

Performance data:

Accuracy: RSS1, at constant temperature ±0.25% FS

Non-linearity, BFSL: ±0.20% FS

Hysteresis: 0.10% FS

Non-repeatibility: 0.05% FS

Thermal effects:

Compensated range: 30°F to 150°F (-1°C to +65)

Zero shift % FS at 100°F (% FS at 50°C): 2.0 (1.8)

Span shift % FS at 100°F (% FS at 50°C): 2.0 (1.8)

Line pressure effect: Zero shift ±0.004% FS/PSIG line pressure

Warm-up shift: ±0.1% FS total

Response time: 30 ms to 50 ms

Maximum line pressure: 350 psig

Environmental data:

Operating temperature: 0°F to 175°F (-18°C to 80°C)

Note: Operating temperature only limits the electronics. Pressure media temperatures may be considerably higher.

Storage temperature: -65°F to 250°F (-54°C to 121°C)

Vibration: 5 g from 5 Hz to 500 Hz

Acceleration: 10 g

Shock: 50 g

Physical specifications:

Case: Stainless steel or aluminum

Electrical connections: Barrier strip terminal block with conduit enclosure and 0.875 DIA conduit opening.

Pressure fittings:1/4 - 18 NPT internal

Weight: 14.4 oz

Compliance:CE

product series features

±0.25% FS accuracy
Available to 1 psid with 350 psi line pressure
No liquid fill diaphragm
NEMA 4 rated housing
Low line pressure effect
Fast response time
Gas and liquid compatible

more information & related documents

Series Description

<p>The Differential Pressure Transducer DP110 Series is Johnson Controls high accuracy solution to monitor differential pressure in wet-to-wet applications. A single diaphragm design enables a true wet-to-wet differential pressure measurement with superior ±0.25% full-scale (FS) accuracy in comparison to competitive units, which uses two single-point pressure sensors to calculate differential pressure. The stainless steel capacitive sensor provides a highly accurate, linear analog output proportional to the pressure over a wide temperature range. The DP110 is offered with an optional 3-valve manifold for ease of installation and maintenance.<br></p>

Kele Description

DPT, WET-TO-WET, 0 PSID TO 5 PSID, UNIDIRECTIONAL, 3-VALVE MANIFOLD, 0.05 VDC TO 10.05 VDC

Manufacturer

Johnson Controls
