PWRDF02A15 | Greystone Energy Systems | Pressure Components
WET DIFF PRESS XMTR, RMT SNSR, POLYCARB, THREAD ADPTR, CABLE GLAND FTTG, ARMORED CABLE, 15M (50')
Brand:Greystone Energy Systems
MPN:PWRDF02A15
SKU:PWRDF02A15
List Price:
$1,562.00
Today's Price:
$812.24
Log in for customized pricingproduct specifications
Display
LCD
Enclosure Rating
IP65, NEMA 4
Application
Industrial Process
Operating Temperature Range
-4 to 185°F
product series specifications
Accuracy: +/- 1% FS for the three highest ranges, +/- 2% for the lowest range
Media Compatibility: Any gas or liquid compatible with 316 Stainless Steel
Operating Temperature Range: Transducer: 32F to 122F (0C to 50C); Electronics/housing/cable: -4F to 185F (-20C to 85C)
Operating Humidity: 10-90% RH, non-condensing
Voltage Output: 4-20 mA (2-wire loop powered)
Minimum Supply Voltage: 14 VDC + 0.02 x (resistance of receiver plus line)
Maximum Supply Voltage: 30 VDC
External Load Resistance: 0-500 ohms
product series features
- Polycarbonate enclosure
- 3.5 Digits LCD Display
- Capable of detecting pressures up to 500 psi, or 3500 kPa
- Factory Calibrated
more information & related documents
Series Description

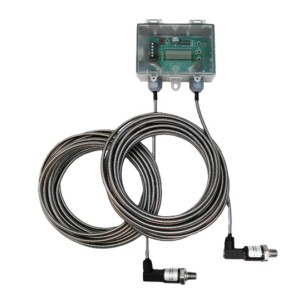

The differential pressure transmitter features a dual remote pressure sensor capable of detecting pressures up to 500 psi, 35 bar, or 3500 kPa. It can withstand overpressure up to twice the maximum pressure and burst pressure up to ten times the maximum pressure. This versatile sensor allows for various on-site parameter adjustments, including changing pressure ranges, selecting output signal types, reversing output, setting signal reactivity time, swapping ports, and performing bidirectional measurements. The output signal is factory calibrated to ensure maximum accuracy.
Kele Description
WET DIFF PRESS XMTR, RMT SNSR, POLYCARB, THREAD ADPTR, CABLE GLAND FTTG, ARMORED CABLE, 15M (50')
Manufacturer
Greystone Energy Systems
Related Documents
PWRD Series Install Instructions
