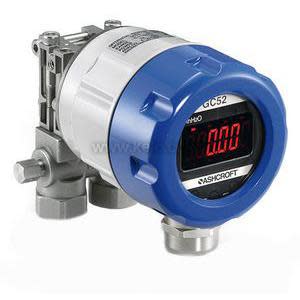

GC527F0242CG20IW | Ashcroft, Inc | Pressure Components

GC52- Rangeable Wet-Wet Differential Pressure Transmitter, ±0.50%, 1/4 NPT Female, 4-20 mA, Cable Gland, 0-20" WC

Brand:Ashcroft, Inc

MPN:GC527F0242CG20IW

SKU:GC52-20IW

List Price:

$3,384.86

Today's Price:

$1,760.13

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Liquid,Gas

Range

±50 in WC

Type

Fixed

Accuracy

0.5%

Output

4 - 20 mA

Display

LCD,LED

Enclosure Rating

NEMA 4X

Approvals

EMC

Connections

1/4 in NPT

Wetted Materials

316 Stainless Steel

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 12-32 VDC @ 25 mA

Accuracy: ±0.5% Full scale (Linearity, Hysteresis & Repeatability)

Signal Output (Volts, Current): 4-20 mA @ <545 Ω (loop powered)

Sensor Type: Capacitive (silicon, Si-Glas)

Adjustments: Zero and Span trim POTs

Normal Measurement Range: ±0 to 400 WC (per order)

Display: LCD, 4 digits (WC), 10mm high, ±0.5 accuracy

Overpressure (Burst): 130 psid (896 kPa)

Max Operating Pressure (Proof): Ranges (4IW, 8IW, 4IWL) = 30 psid (207 kPa) - All other ranges = 100 psid (689 kPa)

Operating Temperature: 14 to 140°F (-10 to 60°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: 316 stainless steel (media temp -10° to 70°C)

Media Compatibility: Liquid/Gasses compatible with 316 SS

Process Connection: ¼" FNPT, with equalizing valve

Wiring Terminations: Terminals 2-(4-20mA), 14-22 AWG

Mounting: Tabs with 4, 0.22 inch holes

Enclosure Rating: Powder coated aluminum, NEMA 4 (IP65), with display

Dimensions: 2.36"W x 5.12"H x 4.5"D, (6 x 13 x 11.4 cm)

Weight: 1.5 lb (0.7 Kg)

Approvals: CE: EN61326/1997, A1/1998, A2/2001

Warranty: 1 year

product series features

0.5% accuracy
Push button configuration
Linear scaling function
LED back light
Loop check function
4-20 mA output
NEMA 4X (IP65) protection
Scaling function
Flow measurement and totalization (square root extraction)

more information & related documents

Series Description

The Ashcroft GC52 Series Low Differential Pressure Transmitter offers reliable, low differential pressure measurement with an accuracy of 0.5%. The transmitter is loop powered with an integral LCD display. The GC52 features zero and span adjustment, linear scaling function, digital filter function, and push button configuration. The rugged NEMA 4X enclosure allows usage in indoor or outdoor environments.

Kele Description

WET-WET DIFF PRESS XMTR, FIXED, +/-0.50%, 0-20" WC, 4-20 MA, NO REM SNSR, LCD

Manufacturer

Ashcroft, Inc
