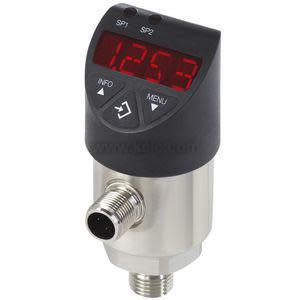

PSD-30-11 | Wika Instrument Corporation | Pressure Components

4-20 mA Pressure Transmitter & Switch with Integral LED Display, 0-5000 (0-34,473.8) [BURST PSI = 24,650 psi]

Brand:Wika Instrument Corporation

MPN:PSD-30-11

SKU:PSD-30-11

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

catalog page

product specifications

Direction

Uni-Directional

Measurement

PSI

Range

±10,000 psi

Type

Adjustable

Accuracy

Output

4 - 20 mA

Contact Rating

0.25A @ 23 VDC

Enclosure Rating

IP65

Features

LED,4-20 mA

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 15 to 35VDC @<100mA

Current output: 15 to 35VDC @<100mA

Signal Output (Volts,Current): 0-10VDC, 4-20mA sourcing

Min Voltage Output Impedance: 10KΩ

Max Current Output Impedance: 500Ω @24VDC

Contact type: Two Triac, 250mA @(Pwr supply volts -1v)

Setpoint adjust LL range: + 0.5% of span to UL range

Differential LL Range to Setpoint: - 0.5% of span

Accuracy: ±1% of span Full scale (includes linearity, repeatability and Hysteresis)

Sensor Type: Piezoresistive

Adjustments (Z/S): Pressure Setpoint and Hysteresis

Normal Measurement Range: Vacuum to 5000 PSIG (See ordering)

Display: Digital LED w/3.5 Red digits, 0.35" High

Overpressure (Burst): 5800 to 34,800 PSI (400 to 2400 bar)

Max Operating Pressure (Proof): 11,600 to 17,400 (80 to 1200 bar)

Operating Temperature: -4° to 185°F (-20° to 85°C)

Compensated Temp. Range: 32° to 176°F (0° to 80°C)

Operating Humidity: 0 to 90% Non-condensing

Wetted Parts: 316 and >150PSI PH13-8 Stainless Steel

Media Compatibility: Liquid or Gas compatible w/316 & 13-8 SS

Process Connection: 1/4" FNPT

Wiring Terminations: 5 wire pigtails in 6' cable

Mounting: By process connection

Enclosure Rating: 316 SS and plastic NEMA 1

Dimensions: 3.31"H x 2.32"Dia, (8.4 x 5.9 cm)

Weight: 0.44lb (0.2kg)

Approvals: CE, cULus, RoHS

Warranty: 2 year

product series features

Available with single or dual Negative-Positive-Negative (NPN) or Positive-Negative-Positive (PNP) solid state switches
High visibility, rugged 14-segment red LED display electronically rotates 180 degrees for top-down installation
User-friendly, intuitive 3-key operation
Versions with 4-20 mA or 0-10V analog output available
Programming menu meets VDMA Standards for user friendly navigation.

more information & related documents

Series Description

The design and outstanding functionality of the Wika PSD-30 pressure transmitter and switch received the IF Product Design Award in 2009. The large, ergonomically designed programming push buttons provide the user with tactile feedback for immediate confirmation that the touch event was registered by the transmitter. The user-friendly menu navigation layout meets the new German Engineering Federation (VDMA) Standard form for fluid sensors (24574-1, Part 1, pressure switch). The goal of the VDMA is to simplify the use of pressure switches by standardizing menu navigation and display parameters.The PSD-30 can be adjusted three different ways to fit specific installation requirements. The display and electrical connection can be rotated independently to maximize visibility while still orienting the electrical connection in the best position for the cable connector. If the transmitter is installed overhead or upside down the display can be electronically rotated 180 degrees. Time tested, proven WIKA thin film and piezoresitive pressure sensor technology is an integral part of the PSD-30 providing the high quality and long term reliability users demand.

Kele Description

PRESS SW, ADJUST, 0-5000 PSI

Manufacturer

Wika Instrument Corporation
