J21K-150

J21K-150 | United Electric | Pressure

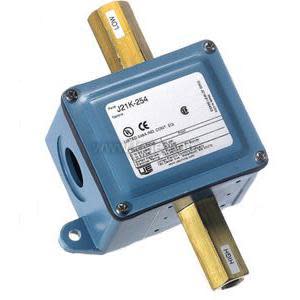

Differential Pressure Switch, 0-40 psid

Brand:United Electric

MPN:J21K-150

SKU:J21K-150

List Price:

$1,369.24

Today's Price:

$712.00



Availability: 15 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Contact Rating

15A

Contact Type

SPDT

Accuracy

±1.00%

Approvals

CE Approved, UL Listed

Connection

1/4 in NPT

Direction

Uni-Directional

Housing Material

Metallic

Housing Rating

NEMA 4X

Measurement

PSID

Media Compatibility

Liquid/Gas

Range

±50 PSI

Supply Voltage

480 VAC

Type

Adjustable

Power Required

Switch

Set Point Range

0-40 PSI

product series specifications

    Relay Type :
  • SPDT C-->N.O. @ setpoint Pressure rise
    Relay Rating :
  • 15 A resistive, 125/250/480 VAC
    Setpoint :
  • Internal Adjustment red 5/16th hex nut
    :
  • 0 to 90 psid (0 to 620 kPa) (model specifc)
    Differential :
    J21K-140:
  • 0.1 to 0.4 psi (0.7 to 3 kPa)
    J21K-150 :
  • 0.3 to 0.7 psi (2 to 5 kPa)
    J21K-232:
  • 0.6 to 1 psi (4 to 7 kPa)
    J21K-(254, 257):
  • 2 to 4 psi (14 to 28 kPa)
    Repeatability:
  • ±1% over full range
    Reset :
  • Automatic reset by differential
    Sensor Type :
    J21K-1x0:
  • Brass bellows diaphragm
    J21K-2xx:
  • Bronze bellows diaphragm
    J21K-357:
  • Stainless Steel bellows diaphragm
    Operating Pressure Range :
    J21K-140:
  • 30‚Ä= Hg vac to 30 psi (1241 kPa)
    J21K-150:
  • 30‚Ä= Hg vac to 180 psi (1241 kPa)
    J21K-232:
  • 30‚Ä= Hg vac to 110 psi (759 kPa)
    J21K-254:
  • 30‚Ä= Hg vac to 200 psi (1379 kPa)
    J21K-357:
  • 30‚Ä= Hg vac to 350 psi (2413 kPa)
    Overpressure:
  • (Burst) 180 psid (1241 kPa)
    Max Operating Pressure:
  • (Proof)
    J21K-140:
  • 6 psid (41 kPa)
    J21K-150:
  • 40 psid (276 kPa)
    J21K-232:
  • 25 psid (172 kPa)
    J21K-254:
  • 90 psid (620 kPa)
    J21K-357:
  • 70 psid (483 kPa)
    Operating Temperature:
  • -40° to 160‚Ñâ (-40° to 71‚ÑÉ)
    Operating Humidity:
  • 10 to 90% Non-condensing
    Wetted Parts:
  • Brass, Bronze or SS bellows (See ordering)
    Media Compatibility:
  • Water, Glycol and Inert dry air
    Process Connection:
  • 1/4‚Ä= FNPT
    Wiring Terminations:
  • 3 Screw terminals (Com, NO, NC), 14 AWG max
    Mounting:
  • 2 tab holes 0.25‚Ä= dia
    Enclosure Rating:
  • Cast aluminum w/7/8‚Ä= conduit hole, NEMA 4X
    Dimensions:
  • 4.228‚Ä=W x 8.0‚Ä=H x 2.66‚Ä=D, (10.7 x 20.5 x 6.8 cm)
    Weight:
  • 2.0 lb (0.9 Kg)
    Approvals:
  • UL File #E42272, CE
    Warranty:
  • 1 year

product series features

  • Adjustable setpoint
  • Sealed metal bellows
  • 15A switch rating
  • Epoxy coated enclosure

more information & related documents

Series Description

The J21K Series Differential Pressure Switches utilize opposing metal bellows to detect pressure differences between two pressure sources. When the pressure at the high port exceeds the pressure at the low port by a pre-determined amount (set point), it activates the differential pressure switch with a single snap-action. These differential pressure switches are ideal for HVAC, industrial and building automation systems applications. To adjust the control set point, turn the internal hex screw.

Kele Description

DIFF PRESS SW, ADJUST, 0-40 PSID

Manufacturer

United Electric
