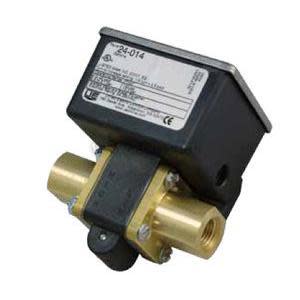

24-014-C | United Electric | Pressure Components
Delta-Pro Pressure Switch 4-45 psid, Kele Custom Calibrated
Brand:United Electric
MPN:24-014-C
SKU:24-014-C
List Price:
$527.00
Today's Price:
$274.04
Log in for customized pricingproduct specifications
Measurement
PSID
Media Compatibility
Liquid,Gas
Connection Size
1/4 in
Type
Adjustable
Connection
NPTF
Housing Material
Reinforced Polyester Enclosure, Stainless Steel Cover and Gasket
Switch Output
SPDT
Process Connection Dimensions
Brass Pressure Conn
Contact Rating
5A @ 125/250 VAC,5A Resistive, 3A Inductive @ 30 VDC,0.5A Resistive, 0.25A Inductive @ 125 VDC
Power Required
Switch
Repeatability
1%
Enclosure Rating
NEMA 4
Process Variable
Differential Pressure
Contact Type
SPDT
Measurement Range
4 - 45 PSID
Switch Rating
5A @ 125/250 VAC
Working Pressure
0 - 150 PSI
Proof Pressure
150 PSI
Deadband
1 PSID
Pressure Connection
1/4 in NPTF
Adjustments
External Multi-Turn Adjusting Screw
Approvals
CE,UL
Electrical Connection
7/8" Hole for 1/2" NPT Connector,Terminal Block w/ Screw Terminals (16 AWG Wire Max)
Wetted Materials
Polyurethane Diaphragm
Supply Voltage (Nominal)
240 VAC
Direction
Uni-Directional
product series features
- For applications involving hot or cool air, water, gas, or oil
- 5-Amp SPDT snap action switch output
- External stainless steel multi-turn adjusting screw
- Brass or polysulfone pressure connections
- Repeatability to ±1% full scale range
- Narrow deadband
- Force-balanced design for excellent vibration resistance
- Optional watertight conduit connection Listed, cUL certified, CE compliant
more information & related documents
Series Description
Cost-effective differential pressure switch with external adjustment. Diaphragm sensor and snap-action switch, single SPDT switch outputs, NEMA 4 enclosure general service environments. UL, cUL, ATEX, and IECEx approvals, CE compliant.
Kele Description
DIFF PRESS SW, ADJUST, 4-45 PSID
Manufacturer
United Electric
Related Documents
UE-ds-24-B-07-2019-05
