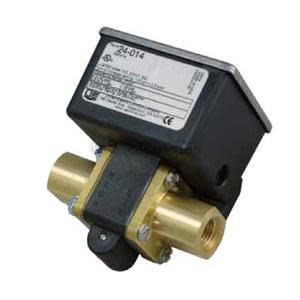

Delta-Pro Pressure Switch 4-45 psid

Brand:United Electric

MPN:24-014

SKU:24-014

List Price:

$517.04

Today's Price:

$268.86



Availability: 46 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Contact Rating

5A

Contact Type

SPDT

Accuracy

±1.00%

Approvals

CE, CSA, UL

Connection

1/4 in NPT

Direction

Uni-Directional

Housing Material

Poly

Housing Rating

NEMA 4

Measurement

PSID

Media Compatibility

Liquid/Gas

Range

±50 PSI

Supply Voltage

252 VAC

Type

Adjustable

Power Required

Switch

Set Point Range

4-45 PSI

product series specifications

    Relay Type :
  • SPDT C‚Äî>NO on Pressure increase
    Relay Rating :
  • Gold clad silver contacts for minimum loads
    :
  • 5 mA @ 6 VDC, 2 mA @12 VDC, 1 mA @ 24 VDC
    :
  • 5 A resistive & Inductive @ 125-250 VAC (Power Facto r= 75%), 1/4 HP
    :
  • 5 A resistive, 3 A inductive @30VDC
    Setpoint :
  • External adjustment screw
    24-013:
  • 1 to 10 psid, (6.9 to 69 kPa)
    24-014:
  • 4 to 45 psid, (27.6 to 310 kPa)
    Differential:
    24-013:
  • Fixed 0.75 psid (5.1 kPa)
    24-014:
  • Fixed 1.0 psid (6.9 kPa)
    Repeatability :
  • ±1% over full range
    Reset :
  • Automatic reset by differential
    Sensor Type:
  • Polyurethane diaphragm
    Operating Pressure Range :
  • 0 to 150 psid (0 to 1,034 kPa)
    Overpressure :
  • (Burst) 150 psid (1,034 kPa)
    Max Operating Pressure:
  • (Proof) 150 psid (1,034 kPa)
    Operating Temperature:
  • 30° to 160‚Ñâ (-1° to 71‚ÑÉ)
    Operating Humidity :
  • 10 to 90% Non-condensing
    Wetted Parts:
  • Polyurethane, Ethylene propylene, Polysulphone, Brass
    Media Compatibility:
  • Water, Wastewater, Glycol and Inert dry air @200‚Ñâ (93‚ÑÉ)
    Process Connection :
  • 1/4‚Ä= FNPT brass fitting
    Wiring Terminations :
  • 3 Screw terminals for <16 AWG
    Mounting :
  • 2 tabs, #6 screws, 1/2 knockout hole
    Enclosure Rating:
  • NEMA 4, Polyester body, zinc-plated steel cover
    Dimensions :
  • 3.13‚Ä=W x 3.5‚Ä=H x 2.37‚Ä=D, (7.94 x 8.89 x 6.03 cm)
    Weight :
  • 0.4 lb (0.18 Kg)
    Approvals :
  • UL File #E42272, CE, CSA
    Warranty :
  • 1 year

product series features

  • SPDT switch with screw terminals
  • Gasketed zinc-plated steel cover
  • Strong, corrosion-resistant polyester enclosure
  • External, multiturn adjusting screw for excellent resolution
  • 7/8 in hole for 1/2 in NPT conduit connection
  • Corrosion-resistant brass port
  • Front accessible holes for surface mounting
  • NEMA 4 enclosure

more information & related documents

Series Description

The Delta-Pro Models 24-013 and 24-014 NEMA 4 differential pressure switches offer a unique blend of small size, excellent performance, environmental protection, and attractive price. They can be used with liquids or gases. The precision snap-acting switch and sensitive opposing diaphragms combine to provide a narrow deadband and repeatability of approximately ±1% of span. Mechanical contact life is 10 million cycles, and actual switch life can be very long with typical pilot duty loads. The Delta-Pro NEMA 4 enclosure is small, yet it can still accommodate a 1/2 in NPT conduit connection and terminal block wiring. The Delta-Pro is not only lightweight but also strong and durable. The multiturn adjustment screw is externally accessible for convenience and excellent resolution. The Delta-Pro's force-balance design provides excellent vibration resistance.
