KDPS-05 | Kele | Pressure Components
Differential Pressure Switch, 0.20-2.00" WC
Brand:Kele
MPN:KDPS-05
SKU:KDPS-05
List Price:
$84.79
Today's Price:
$44.09
Log in for customized pricingproduct specifications
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Connection Size
1/4 in
Type
Adjustable
Connection
OD Tubing
Housing Material
Poly
Contact Rating
1.5 A
Set Point Range
0.20 - 2 in
Power Required
Switch
Enclosure Rating
NEMA 3R
Contact Type
SPDT
Approvals
CE, UL, RoHs
Direction
Uni-Directional
product series specifications
Relay Type: SPDT
Relay Rating: 1.5A resistive
Differential Fixed: 0.04" to 0.06" WC (See ordering)
Reset Automatic: reset by differential
Visual Indication: Internal SP dial
Sensor Type: Diaphragm
Overpressure: (Burst) 40.4" WC (10kPa)
Max Operating Pressure: (Proof) 20" WC (5kPa)
Operating Temperature: -40° to 185°F (-40 to 85°C)
Operating Humidity: 10 to 90% Non-condensing
Wetted Parts: Rubber for clean air only
Media Compatibility Inert: dry air
Process Connection: 0.23 OD nipple for 0.25 OD/0.17 ID tubing
Wiring Terminations: 3 Terminals SPDT
Mounting: 4 tabs with Holes 0.14" (0.36cm)
Enclosure Rating: NEMA 3R, (IP54)
Dimensions: 3.95"W x 3.49"H x 1.55"D, (10 x 8.9 x 3.9 cm)
Weight: 0.38 lb (0.17 Kg)
Approvals: CE, UL File #MH46253, RoHs
Warranty: 1 year
product series features
- Transparent cover for setpoint confirmation
- Easy, field adjustable set point
- Dual scales
- Installer kit with PVC tubing included
more information & related documents
Series Description

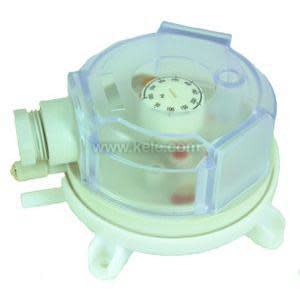

The Kele KDPS Series Adjustable Differential Pressure Switches are general-purpose, airflow-proving switches designed for HVAC and building automation applications. The KDPS Series can be used to sense positive, negative, or differential air pressure. It is housed in a rugged plastic enclosure with a removable cover protecting the set point adjustment knob and snap action switch terminals. Electrical connections are made through a 7/8 in diameter opening with M20X1.5 conduit connection. Optional 1/2 in NPT connection is available by adding inF in to the part number.
Kele Description
DIFF PRESS SW, ADJUST, 0.20-2.00" WC
Manufacturer
Kele
