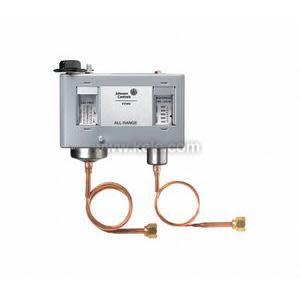

Rectangular Johnson Controls Penn dual pressure control unit with two clear gauge windows, a black adjustment knob on top, and two coiled copper capillary tubes with brass fittings extending below.

P70NA-1C | Johnson Controls | Pressure Components

Dual Pressure Control, 100-500 High Pressure Range (PSIG), SPST, Manual Reset

Brand:Johnson Controls

MPN:P70NA-1C

SKU:P70NA-1C

List Price:

$610.00

Today's Price:

$317.20

product datasheet

installation instructions

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSIG

Media Compatibility

Air

Range

±500 psi

Type

Adjustable

Contact Type

SPST

Housing Material

Metallic

Override

Manual

Set Point Range

20 in

Power Required

Switch

Features

Dual Pressure Control,Manual Reset

Supply Voltage (Nominal)

240 VAC

product series specifications

Connection (Switch Action): SPST

Low Pressure - Range: 12 in. Hg – 100 psi

Low Pressure - Differential: 5 – 50 psi

High Pressure - Range: 100 – 500 psi

High Pressure - Differential: 65 psi

Pressure connection: 1/4 in. flare | 36 in. capillary

Enclosure: NEMA 1 and NEMA 3R

product series features

All-steel case and cover
Sight-set calibrated pressure adjustment
MICRO-SET™ differential option
Independent high- and low-pressure switches
Convertible automatic or manual reset lockout for high pressure

more information & related documents

Series Description

The P70, P72, and P170 Controls for dual-pressure applications are designed primarily for use as a combination of high- and low-pressure controls on commercial refrigeration and air conditioning applications.

Kele Description

LOW PRESSURE CONTROL

Manufacturer

Johnson Controls
