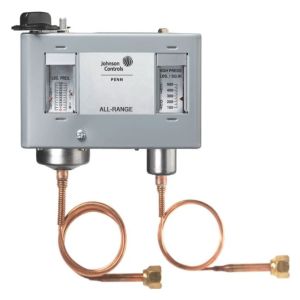

* product series image displayed
P70MA-1C | Johnson Controls | Pressure Components
20"/100LS,100/425HSM/R,36",#SW
Brand:Johnson Controls
MPN:P70MA-1C
SKU:P70MA-1C
List Price:
$604.00
Today's Price:
$314.08
Log in for customized pricingproduct specifications
Media Compatibility
Air
Type
Adjustable
Override
Manual
Power Required
Switch
Contact Type
SPST
Measurement Range
20 in
Supply Voltage (Nominal)
240 VAC
product series specifications
Connection (Switch Action): SPST
Low Pressure - Range: 12 in. Hg – 100 psi
Low Pressure - Differential: 5 – 50 psi
High Pressure - Range: 100 – 500 psi
High Pressure - Differential: 65 psi
Pressure connection: 1/4 in. flare | 36 in. capillary
Enclosure: NEMA 1 and NEMA 3R
product series features
- All-steel case and cover
- Sight-set calibrated pressure adjustment
- MICRO-SET™ differential option
- Independent high- and low-pressure switches
- Convertible automatic or manual reset lockout for high pressure
more information & related documents
Series Description
The P70, P72, and P170 Controls for dual-pressure applications are designed primarily for use as a combination of high- and low-pressure controls on commercial refrigeration and air conditioning applications.
Kele Description
20"/100LS, 100/425HSM/R ,36",#SW
Manufacturer
Johnson Controls
Related Documents
US-P70-P72-and-P170-Series-Control-for-DP-Applications-Installations
