ADPS-06-2-N

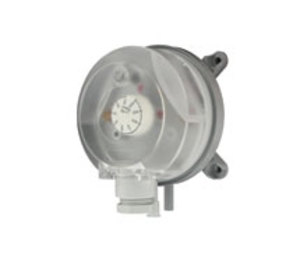

* product family image displayed

ADPS-06-2-N | Dwyer Instruments | Pressure

DIFF PRESS SW, ADJUST, 2.00-10.00" WC

Manufacturer:Dwyer Instruments

MPN:ADPS-06-2-N

SKU:ADPS-06-2-N

List Price:

$63.95

Today's Price:

$31.98



Availability: Usually Ships in Less Than 3 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

    Supply Voltage:
  • Not required
    Contact Type SPDT:
    Contact Rating:
  • 1.5A resistive, 0.4A ind. @250VAC
    Setpoint (SP):
  • Selecatable 0.08″ to 10″ WC (See ordering)
    ADPS-8:
  • 0.08″ to 1.2″ WC (20 to 300 Pa)
    ADPS-4:
  • 0.12″ to 1.6″ WC (30 to 400 Pa)
    ADPS-3:
  • 0.2″ to 2.0″ WC (50 to 500 Pa)
    ADPS-5:
  • 0.80″ to 4.0″ WC (200 to 1000 Pa)
    ADPS-6:
  • 2.0″ to 10.0″ WC (500 to 2500 Pa)
    Differential Progressive:
  • by setpoint (See ordering)
    ADPS-8:
  • 0.04″ to .05″WC (10-12 Pa)
    ADPS-4:
  • 0.06″ to .09″ WC (15-22 Pa)
    ADPS-3:
  • 0.08″to .09″ WC (20-23 Pa)
    ADPS-5:
  • 0.4″ to 0.5″ WC (100-130 Pa)
    ADPS-6:
  • 0.6″ to 0.8″WC (150-200 Pa)
    Repeatability:
  • ±5% FS.
    Reset Automatic
  • reset by differential
    Visual Indication Internal SP:
  • dial
    Sensor Type:
  • Silicone Diaphragm
    Operating Pressure:
  • Range 0 to 10″WC (See ordering)
    Overpressure:
  • (Burst) 40.4″ WC (10kPa)
    Max Operating Pressure:
  • (Proof) 20.0″WC (5kPa)
    Operating Temperature:
  • -40° to 185°F (-40 to 85°C)
    Operating Humidity:
  • 10 to 95% Non-condensing
    Wetted Parts:
  • Silicone for dry air only
    Media Compatibility:
  • Inert dry air
    Process Connection:
  • Two 0.23″ nipples for 3/8th tubing
    Wiring Terminations:
  • 3, 1/4″ spads w/3 Terminal push on connectors
    Mounting:
  • 4 tabs w/Holes 0.14″ (0.36cm)
    Enclosure Rating Plastic,:
  • NEMA 13, (IP54)
    Dimensions:
  • 3.95″ w x 3.49″ h x 2.26″ d, (10 x 8.9 x 5.75 cm)
    Weight:
  • 0.35lb (0.16kg)
    Approvals:
  • CE, RoHS, UL508, CSA
    Warranty:
  • 1 year

product family features

Transparent cover for setpoint confirmation,Easy field adjustable set point,Dual scales

more information & related documents

Family Description

The Dwyer ADPS Series adjustable differential pressure switches are general-purpose, airflow-proving switches designed for HVAC and building automation applications. The ADPS Series can be used to sense positive, negative, or differential air pressure. The silicone diaphragm and calibration spring are housed in a rugged plastic enclosure with a removable cover protecting the set point adjustment knob and snap action switch terminals. Electrical connections are made through a 7/8 in diameter opening in the cover that accepts a 1/2 in conduit connection. Air sampling connections accept 1/4 in ID tubing.

Kele Description

DIFF PRESS SW, ADJUST, 2.00-10.00" WC

Manufacturer

Dwyer Instruments

Related Documents

PDF - ADPS Service Manual.pdf ADPS Service Manual
PDF - ADPS_2014 Install Sheet.pdf ADPS_2014 Install Sheet
PDF - EDPS Install Sheet.pdf EDPS Install Sheet
PDF - ADPS EDPS Datasheet.pdf ADPS EDPS Datasheet
PDF - BDPA Install Sheet.pdf BDPA Install Sheet
PDF - BYDS Install Sheet.pdf BYDS Install Sheet
