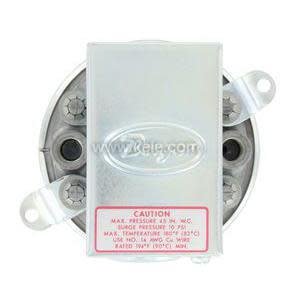

1910-1 | Dwyer Instruments | Pressure Components
Differential Pressure Switch, Range 0.40-1.6" W.C., Approx. Deadband @ Min. Set Point 0.15, Approx. Deadband @ Max. Set Point 0.16
Brand:Dwyer Instruments
MPN:1910-1
SKU:1910-1
List Price:
$229.00
Today's Price:
$119.08
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Connection Size
1/8 in
Contact Type
SPDT
Connection
NPT
Accuracy
3%
Housing Material
Metallic
Measurement Range
0.40 - 1.6 in WC
Contact Rating
15 A
Set Point Range
0.4 - 1.6 in
Power Required
Switch
Process Variable
Differential Pressure
Approvals
CE, CSA, FM, UL
Supply Voltage (Nominal)
480 VAC
product series specifications
Relay Type: SPDT
Relay Rating: 15 A resistive, 120-480 VAC, 60 Hz; 1/8 HP @125 VAC, 1/4 HP @ 250 VAC
Repeatability: ± 3% over full range
Reset: Automatic reset by differential
Sensor Type: Silicone Diaphragm
Overpressure: (Burst) 276"WC (68.9 kPa)
Max Operating Pressure: (Proof) 45"WC (11.2 kPa)
Operating Temperature: -30° to 180°F (-34° to 82°C)
Operating Humidity: 10 to 90% Non-condensing
Wetted Parts: Silicone
Media Compatibility: Inert dry air
Process Connection: 1/8 FNPT
Wiring Terminations: 3 Screw terminals, 22-18 AWG
Mounting: Vertical with 2 hole bracket 2 holes 0.187 (0.5cm)
Enclosure Rating: Zink-plated steel, NEMA 1
Dimensions: 3.5"dia x 2.34"d (8.89 x 5.9 cm)
Weight: 1.28 lb (0.58 Kg)
Approvals: CE, CSA, FM, UL File #E38121
Warranty: 1 year
more information & related documents
Series Description
The 1910 Series differential pressure switches are designed to monitor the differential pressure of air in HVAC applications and building automation systems, BAS. An automatic reset pressure switch is available in ranges from 0.07 in to 20 in W.C. (17.4 to 4982.0 Pa) with SPDT screw type electrical connections. The optional Model A-602 air filter kit includes two static pressure tips, aluminum tubing, and fittings, and it allows the 1910 Series to monitor filter pressure drop.
Kele Description
DIFF PRESS SW, ADJUST, 0.40-1.60" WC
Manufacturer
Dwyer Instruments
Related Documents
1900 Series Datasheet
