NS2-0000-02 | Cleveland Controls | Pressure Components

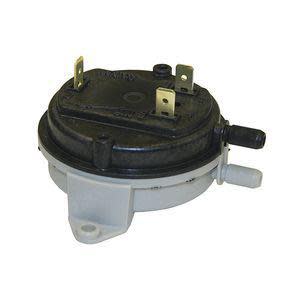

Differential Pressure Switch, 0.05-10" WC, Fixed, SPDT, SPST (NC), SPST (NO)
Brand:Cleveland Controls
MPN:NS2-0000-02
SKU:NS2-0000-02
List Price:
$59.24
Today's Price:
$30.81
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Air
Connection Size
1/4 in
Type
Adjustable
Contact Type
SPNO,SPNC,SPDT
Connection
OD Tubing
Housing Material
Metallic
Contact Rating
5 A
Set Point Range
0.05 - 10 in
Power Required
Switch
Approvals
UL, CUL, CSA, CE
product series specifications
Relay Type: SPDT (Silver plated)
Relay Rating: 1.2A @ 24 VAC/VDC, 125 VA @120VAC, 1/10 HP @120-277 VAC
Setpoint (SP): Adjustable w/spring and 7/32" hex fine adj.
Spring:
Black: 0.1 to 0.3" WC
Neutral: 0.3 to 0.9" WC
Yellow: 0.9 to 2.5" WC
Red: 2.5 to 5.0" WC
Blue: 5.0 to 10.0" WC
Differential Progressive: 2%-5% of max SP spring
Fixed progressive: 0.02" to 0.8" WC over SP range
Reset Automatic: reset by differential
Sensor Type: Silicone Diaphragm
Operating Pressure Range: 0.1 to 10" WC
Overpressure: (Burst) 14" WC (3.5kPa)
Max Operating Pressure: (Proof) 14" WC (3.5kPa)
Operating Temperature: -40° to 190°F (-40 to 88°C)
Operating Humidity: 10 to 90% Non-condensing
Wetted Parts: Silicone
Media Compatibility: Inert dry air
Process Connection: 1/4" Nipple for 3/8" tubing
Wiring Terminations: 3 Spade terminals, ¼" x 0.032
Mounting: Vertical, 2 tabs with Holes 0.19"(0.5cm)
Enclosure Rating: Glass-filled polycarbonate, NEMA 1
Dimensions: 3.45"W x 3.08"H x 1.67"D, (8.8 x 7.8 x 4.2 cm)
Weight: 0.25 lb (0.11 Kg)
Approvals: CE, CSA, UL File #MH6213
Warranty: 1 year
product series features
- Five pressure ranges in one unit
- Field adjustable setpoint and setpoint range
- Actuated by pressure or vacuum
- SPDT switch
more information & related documents
Series Description
The economical Model NS2 Adjustable Differential Pressure Switch Kit is designed for positive, negative, or differential pressure monitoring with actuation on pressure rise or fall in the building automation environment. The set point range can be field configured between 0.10 in w.c. and 10.0 in w.c. using the appropriate spring included in the kit. The kit includes a switch with quick-connect terminals, five different springs to change the set point range, orifice plugs to restrict air flow, mounting brackets, a hex wrench, and instructions.
Kele Description
DIFF PRESS SW, ADJUST, 0.05-10" WC
Manufacturer
Cleveland Controls
Related Documents
NS2-0000-xx Installation Manual
