AFS-460 | Cleveland Controls | Pressure

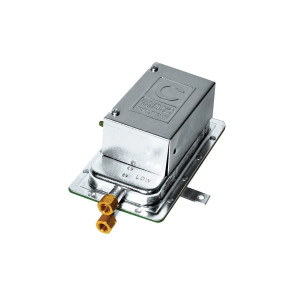

Differential Pressure Switch, 0.40-12 WC, Adjustable, SPST (NC)
Brand:Cleveland Controls
MPN:AFS-460
SKU:AFS-460
List Price:
$135.24
Today's Price:
$70.32
product specifications
Contact Rating
1A
Contact Type
SPST (NC)
Approvals
UL, CSA, CE
Connection
1/4 in OD Tubing
Direction
Uni-Directional
Features
Manual Reset
Housing Material
Metallic
Housing Rating
NEMA 1
Measurement
Inches of Water Column
Media Compatibility
Air
Override
Manual Reset
Range
±50 in WC
Supply Voltage
277 VAC
Type
Adjustable
Power Required
Switch
Set Point Range
0.40-12 in
product series specifications
- Relay Type: SPDT
- Relay Rating: 2.4 A @ 24 VAC; 15 A @ 277 VAC
- Setpoint (SP):Adjustable, 0.05 to 12.0‚" WC
- Differential Progressive: 0.02" to 0.8" WC per setpoint
- Reset Auto reset: All models
- Sensor Type: Silicone Diaphragm
- Operating Pressure Range: 0.05 to 12" WC (See ordering)
- Overpressure: (Burst) 13.85"WC (3.45 kPa)
- Max Operating Pressure: (Proof) 13.85"WC (3.45 kPa)
- Operating Temperature: -40° to 180° (-40° to 82°C)
- Operating Humidity: 10 to 90% Non-condensing
- Wetted Parts: Silicone
- Media Compatibility: Inert dry air
- Process Connection: 1/8" FNPT, 1/4" compression, 1/4" barb (see ordering)
- Wiring Terminations: 3 Terminals
- Mounting Vertical: 2 tabs w/Holes 0.19" (0.48 cm)
- Enclosure Rating: Zink-plated steel, NEMA 1
- Dimensions: 4" w x 6.13"h x 3.56"d, (10.2 x 15.6 x 9 cm)
- Weight: 1.2 lb (0.5 Kg)
- Approvals: UL File #MH6213, CSA, FM
- Warranty: 2 year
product series features
- Adjustable set point
- For static or differential pressure
- 15A switch rating
- Gold contacts (Model AFS-405)
- UR, CSA, FM approved
- Two-year warranty
more information & related documents
Series Description
The AFS Series adjustable differential pressure switches are general purpose, air flow switches designed for HVAC and building automation applications. The adjustable differential pressure switches can be used to sense positive, negative, or differential air pressure. The differential pressure switch diaphragm and calibration spring are housed in a plated enclosure with a removable metal guard protecting the set point screw and snap action switch terminals. Electrical connections are made through a 7/8 diameter opening in the metal guard that accepts a conduit connection. Air sampling connections accept OD rigid or semi rigid tubing. The Model AFS-460 features a manual reset button to close the switch following actuation. For low current applications use Model AFS-405 with gold contacts.
Kele Description
DIFF PRESS SW, ADJUST, 0.40-12" WC
Manufacturer
Cleveland Controls
