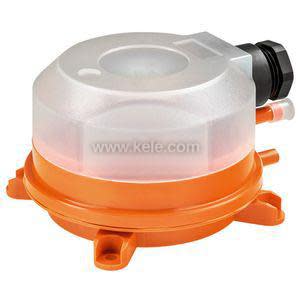

01APS-50U | Belimo | Pressure Components
Differential Pressure Switch, 0.20...2.00 inch WC [50...500 Pa], passive, switch
Brand:Belimo
MPN:01APS-50U
SKU:01APS-50U
List Price:
$95.00
Today's Price:
$49.40
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Connection Size
1/2 in
Type
Adjustable
Contact Type
SPDT
Connection
NPT
Accuracy
15%
Contact Rating
1 A
Set Point Range
0.20 - 2 in
Power Required
Switch
Approvals
CE, ISO 9001, UL
product series specifications
Output Signal Switch Note: Contact current max. 1.0 A (0.4) / AC 250 V
Output Signal: Switch
Accuracy: ±15% (tolerance for upper and lower switching pressure)
Operating Pressure Range:
01APS-50R: 0.08 to 1.20" WC (20...300 Pa)
01APS-50U: 0.20 to 2.00" WC (50...500 Pa)
01APS-501: 0.80 to 4.00" WC (200...1000 Pa)
01APS-504: 2.00 to 10.00" WC (500...2500 Pa)
Overpressure: 40 inch WC (10kPa)
Max Operating Pressure: 40 inch WC (10kPa)
Operating Temperature: -5°F to 185°F (-20°C to 85°C)
Media Compatibility: air, non-combustible and non-aggressive gases
Process Connection: 1/2" NPT
Wiring Terminations: terminals for wire 15 GA (0.5 to 1.5 mm) (see wiring)
Mounting Vertical: 4 tabs with Holes
Enclosure Rating: IP54l, NEMA 3
Dimensions: 4.64" x 2.56" x 2.25"
Weight: 0.15 lb
Approvals: ISO 9001, IEC/EN 60730-1 and IEC/EN 60730-2-6
Warranty: 5 year
product series features
- Automatic reset
- Field adjustable setpoints
- Switching differentials
more information & related documents
Series Description
The Belimo 01APS Series Adjustable Differential Pressure Switches are for monitoring overpressure, vacuum and differential pressure of air or other noncombustible, non-aggressive gases for both HVAC and Energy Management Applications. Automatic reset & field adjustable set points as well as switching differentials.
Kele Description
DIFF PRESS SW, ADJUST, 0.20-2.00" WC, 50-500 PA
Manufacturer
Belimo
Related Documents
01APS-Belimo Datasheet
