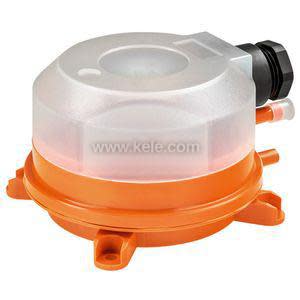

01APS-501 | Belimo | Pressure Components
Differential Pressure Switch, 0.80...4.00 inch WC [200...1000 Pa], passive, switch
Brand:Belimo
MPN:01APS-501
SKU:01APS-501
List Price:
$105.00
Today's Price:
$54.60
Log in for customized pricingproduct specifications
Measurement
Inches of Water Column,Pascals
Media Compatibility
Liquid,Gas
Range
±5 in WC
Connection Size
1/2 in
Type
Adjustable
Connection
NPT
Accuracy
15%
Contact Rating
0-1 A
Set Point Range
0.80 - 4 in
Power Required
Switch
Contact Type
SPDT
Approvals
CE, ISO 9001, UL
Direction
Uni-Directional
product series specifications
Output Signal Switch Note: Contact current max. 1.0 A (0.4) / AC 250 V
Output Signal: Switch
Accuracy: ±15% (tolerance for upper and lower switching pressure)
Overpressure: 40 inch WC (10kPa)
Max Operating Pressure: 40 inch WC (10kPa)
Operating Temperature: -5°F to 185°F (-20°C to 85°C)
Media Compatibility: air, non-combustible and non-aggressive gases
Process Connection: 1/2" NPT
Wiring Terminations: terminals for wire 15 GA (0.5 to 1.5 mm) (see wiring)
Mounting Vertical: 4 tabs with Holes
Enclosure Rating: IP54l, NEMA 3
Dimensions: 4.64" x 2.56" x 2.25"
Weight: 0.15 lb
Approvals: ISO 9001, IEC/EN 60730-1 and IEC/EN 60730-2-6
Warranty: 5 year
product series features
- Automatic reset
- Field adjustable setpoints
- Switching differentials
more information & related documents
Series Description
The Belimo 01APS Series Adjustable Differential Pressure Switches are for monitoring overpressure, vacuum and differential pressure of air or other noncombustible, non-aggressive gases for both HVAC and Energy Management Applications. Automatic reset & field adjustable set points as well as switching differentials.
Kele Description
DIFF PRESS SW, ADJUST, 0.80-4.00" WC, 200-1000 PA
Manufacturer
Belimo
Related Documents
01APS-Belimo Installation
