DBL-205D | ACI | Pressure Components

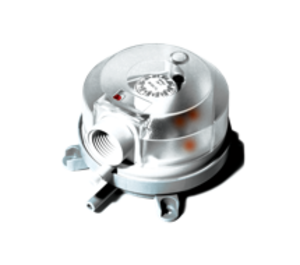

Differential Pressure Switch, 0.8 to 4.0 inWC, SPDT, Auto Reset, NEMA 3 Enclosure
Brand:ACI
MPN:DBL-205D
SKU:DBL-205D
List Price:
$120.00
Today's Price:
$62.40
Log in for customized pricingproduct specifications
Media Compatibility
Liquid,Gas
Range
±5 in WC
Connection Size
1/2 in
Type
Adjustable
Contact Type
SPDT
Connection
NPT
Contact Rating
1 A
Set Point Range
0.80 - 4 in
Power Required
Switch
Approvals
CE, ISO 9001, RoHS2, WEEE
Supply Voltage (Nominal)
240 VAC
product series specifications
Input Pressure Range: From 0.08 - 0.8"wc to 2.0 - 10.0"wc
Adjustable Set Point Range: From 0.04 - 0.8"wc to 0.60 - 1.2"wc
Adjustable Set Point Switching Differential: Factory Default: +/- 15% of Trip / Set Point; See ordering grid below for adjustable switching differential range
Contact (Load) Rating: 250 VAC maximum, 1.5A Resistive (0.4A Inductive)
Contact Arrangement: SPDT (Form 1C) with Automatic Reset
Measured Media: Air and other non-combustible, non-aggressive gases
Diaphragm Material: Silicone
Maximum Operating Pressure: 40" wc (10 kPa)
Life Expectancy: 1,000,000 cycles
Operating , Storage Temperature Range: -4 to 185°F (-20 to 85°C)
Mounting Direction: Any vertical plane
Enclosure Material: Base = PA6.6 / Cover = Polystyrene (Transparent)
Enclosure Rating: NEMA 3 (IP54)
Sample Line Connections: Accepts 3/16" ID (8mm) Push on plastic/poly tubing
Electrical Connections: Spade (Maximum 16 AWG (1.5 mm2))
Conduit Opening: Accepts 1/2" NPT Conduit
Agency Approvals: CE, ISO 9001, RoHS2, WEEE
Dimensions (Diameter x Height): 4.00" x 2.30" (100 x 58 mm)
Weight: DBL Series: 0.40 lbs (0.20 kg), DBZ-06: 0.16 lbs (00.72 kg)
Warranty: 2 year limited warranty
more information & related documents
Series Description
The DBL Series Differential Pressure Switches are adjustable vacuum, pressure and differential pressure switches designed for both HVAC and Energy Management Applications. Due to the ease of calibration and adjustment procedures, these units will save you both installation time and money. The units have field adjustable setpoints and switching differentials. They will reset automatically. Each unit contains (1) SPDT contact rated for 1 Amps @ 250 VAC. All wiring connections are to be made with spade connectors and a maximum wire size of 16 AWG.
Kele Description
DP SWITCH, ADJUSTABLE SETPOINT RANGE 0.80 TO 4.0
Manufacturer
ACI
DBL Series Data Sheet
