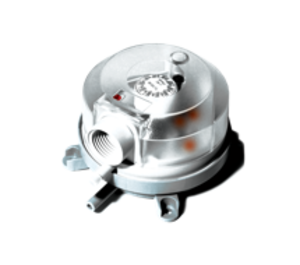

DBL-205B | ACI | Pressure

 From 0.08 - 0.8"wc to 2.0 - 10.0"wc

 From 0.04 - 0.8"wc to 0.60 - 1.2"wc

 Factory Default: +/- 15% of Trip / Set Point; See ordering grid below for adjustable switching differential range

 250 VAC maximum, 1.5A Resistive (0.4A Inductive)

 SPDT (Form 1C) w/ Automatic Reset

 Air and other non-combustible, non-aggressive gases

 Silicone

 40” wc (10 kPa)

 1,000,000 cycles

 -4 to 185ºF (-20 to 85ºC)

 Any vertical plane

 Base = PA6.6 / Cover = Polystyrene (Transparent)

 NEMA 3 (IP54)

 Accepts 3/16” ID (8mm) Push on plastic/poly tubing

 Spade (Maximum 16 AWG (1.5 mm2))

 Accepts ½” NPT Conduit

 CE, ISO 9001, RoHS2, WEEE

 4.00” x 2.30” (100 x 58 mm)

 DBL Series: 0.40 lbs (0.20 kg) | DBZ-06: 0.16 lbs (0.072 kg)

 2 year limited warranty

The DBL Series Differential Pressure Switches are adjustable vacuum, pressure and differential pressure switches designed for both HVAC and Energy Management Applications. Due to the ease of calibration and adjustment procedures, these units will save you both installation time and money. The units have field adjustable setpoints and switching differentials. They will reset automatically. Each unit contains (1) SPDT contact rated for 1 Amps @ 250 VAC. All wiring connections are to be made with spade connectors and a maximum wire size of 16 AWG.

DP SWITCH, ADJUSTABLE SETPOINT RANGE 0.20 TO 2.0
