50693166 | Wika Instrument Corporation | Pressure Components

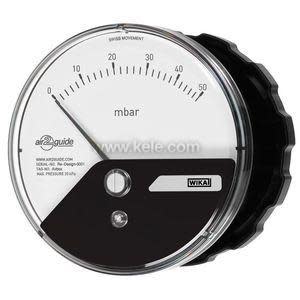

Dial Gauge, Analog, ±3.00%, ±0.10" WC, 4.50" Dial, 1/8" NPT, Dry, Center Back Mount, 0-10 VDC
Brand:Wika Instrument Corporation
MPN:50693166
SKU:A2G15010PCP10
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Direction
Bi-Directional
Measurement
Inches of Water Column
Range
±1 in WC
Connection Size
1/8 in
Type
Analog
Connection
NPT
Accuracy
3%
Housing Material
Metallic
Output
4 - 20 mA
Dial Size
4.50 in
Filling
Dry
Supply Voltage (Nominal)
24 VDC
Mount
Center Back
product series specifications
Supply Voltage: 15 to 35 VDC (A2G-15 only)
Accuracy: ±3% of full span
Signal Output: 4-20 mA, 0-10 VDC (A2G-15 only)
Maximum Output Impedance (mA): 600Ω @ 24 VDC
Range: 0 to 0.2" WC to 0 to 50" WC
Dial Size: 4.5" (11.4 cm)
Maximum Pressure: 80 in WC
Operating Temperature: -22° to 176°F (-30° to 80°C)
Gauge Movement: Frictionless magnetic transmission
Materials Of Construction:
Case: Aluminum
Pointer: Plastic black
Set Pointer: Plastic red
Window: Makrolon
Mounting Case: Black thermoplastic, high impact resistant
Diaphragm Material: Silicone rubber
Enclosure Rating: NEMA 3 (NEMA 4 Optional)
Process Connection: 1/8" to 3/16" hose barbed adapters included
Wiring Terminations: PG gland M12 (A2G-15 only)
Weight: 1.0 lb (0.45 Kg)
Approvals: CE
Warranty: 2 year
product series features
- Zero adjustment in front
- Red mark pointer standard
- Simple mounting and dismounting
- Two part construction
- Analog output signal(A2G-15)
more information & related documents
Series Description
The Wika A2G Series (Air2Guide) pressure gauges are the latest innovation in accurate, full featured, pressure gauges and are ideally suited for the measurement of low pressure and differential pressure from 1.0 in to 50 in WC. Both the A2G-10 and the A2G-15 Series incorporate a two-piece modular design. A benefit of the modular design is a two-part assembly that separates the measuring system from case components. This allows the replacement of only the measuring system, which provides reduced repair costs. The panel mount version of the air2guideP is extremely easy to install and requires no tools. In addition to the local display, the A2G-15 features an electronic output signal and is available with a 2-wire, 4 to 20 mA or 3-wire 0 to 10 VDC output signal. This A2G-15 gauge is ideal for applications where a local indication and remote monitoring or evaluation is needed.
Kele Description
DIAL GAUGE, ANALOG, +/-3.00%, +/-0.10" WC, 4.50", 1/8" NPT, DRY, CNTR BCK MOUNT
Manufacturer
Wika Instrument Corporation
Related Documents
A2G-10 Manufacturers Datasheet
