A2G-05-CP10 | Wika Instrument Corporation | Pressure Components

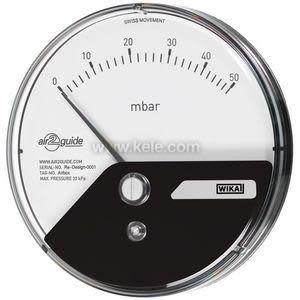

Dial Gauge, Analog, ±5.00%, ±0.10" WC, 4.50" Dial, 1/8" NPT-3/16" NPT, Dry, Lower Mount

Brand:Wika Instrument Corporation

MPN:A2G-05-CP10

SKU:A2G-05-CP10

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

catalog page

product specifications

Direction

Bi-Directional

Measurement

Inches of Water Column

Range

±1 in WC

Connection Size

1/8 in,3/16 in

Type

Analog

Connection

NPT

Accuracy

Output

4 - 20 mA

Dial Size

4.50 in

Filling

Dry

Supply Voltage (Nominal)

24 VDC

Mount

Lower Back

product series specifications

Maximum Output: 600 mA @ 24 VDC

Dial Size: 4.5 in (11.4 cm)

Maximum Pressure: 80 psi WC

Accuracy: ±5% of full span ranges < 0.5 psi WC

Range: 0 to 0.2 psi WC to 0 to 50 psi WC

Operating Temperature: -22° to 176°F (-30° to 80°C)

Gauge Movement: Frictionless magnetic transmission

Materials Of Construction:
Case: Aluminum
Pointer: Plastic black
Set Pointer: Plastic red
Window: Makrolon
Mounting Case: Black thermoplastic, high impact resistant
Diaphragm Material: Silicone rubber

Enclosure Rating: NEMA 3 (NEMA 4 Optional)

Mounting: CBM = center back mount (panel mount), UBM = recess mount

Process Connection: 1/8" - 3/16" hose barbed adapters included

Approvals: CE

Weight: 1.0 lb (0.45 kg)

Warranty: 2 years

product series features

Installation depth 1.65 inch
Unique installation/removal fixtures
Zero adjust on front

more information & related documents

Series Description

The A2G-05 Series differential pressure gauge monitors differential pressure across filter banks and blowers as well as in clean rooms, ducts, and containment systems. The unit features innovative fast and easy mounting, a slim case, and dual isolated sensing and lens/dial compartments. The dual isolated compartments prevent moisture, particles, dirt and the measured gas from entering the lens/dial compartment; keeping the gauge looking pristine. There is no escape of measured gas through the lens. The slim case (1.65 in) works well for recessed installation in the walls of cleanrooms; or in panel doors that have little room behind the panel to spare. Installation time is considerably reduced from other magnetic DP gauges.

Kele Description

DIAL GAUGE, ANALOG, +/-5.00%, +/-0.10" WC, 4.50" DIAL, 1/8" NPT-3/16" NPT, DRY, LWR MOUNT

Manufacturer

Wika Instrument Corporation
