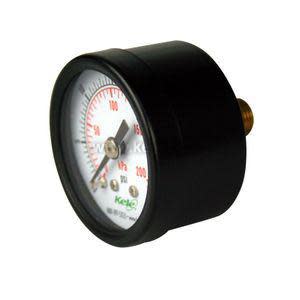

PG-05 | Kele | Pressure
1.5 in 0-30 Psig 1/8 in NPT Gauge
Brand:Kele
MPN:PG-05
SKU:PG-05
List Price:
$24.54
Today's Price:
$12.76
product specifications
Accuracy
0.03
Media Compatibility
Liquid/Gas
Range
±30 PSI
Type
Gauge pressure
product series specifications
Overpressure: 125% of FS value
Operating Temperature: -40° to 150°F (-40° to 65°C)
Wetted Parts: Brass socket, phosphor bronze bourdon tube
Window Material: Acrylic
Process Connection: 1/8" NPT or 1/4" NPT, depending on model (LM = lower mount, CBM = center back mount, PM = panel mount)
Warranty: 1 year
more information & related documents
Series Description
The PG Series Pressure Gauges are durable, cost-effective, general purpose gauges for use in a wide variety of HVAC controls and building automation applications. All gauges are compatible with air, oil, and water and have a steel case, bronze bourdon tube, acrylic lens, and dual unit psi/kPa scale. The PG Series (except model PG-05) pressure gauge has a screw-on lens and recalibrator screw. A wide variety of models, options, and accessories are available, including panel-mount models, specialty gauges, and diaphragm seals. The Model 25W100 Refrigeration Gauge is ideal for installation on refrigeration manifolds for testing air conditioning units. The compound scale is designed specifically for R134A refrigerant testing.
Kele Description
DIAL GAUGE, ANALOG, +/-3.00%, 0-30 PSIG, 1.50" DIAL, 1/8" NPT, DRY, WET, CNTR BCK MOUNT
Manufacturer
Kele
