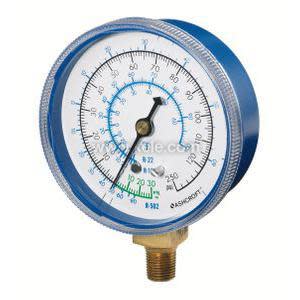

25W1007PH01L-R134A | Ashcroft, Inc | Pressure Components

Supply Voltage (If Used): Not Required

Readout (Analog, digital etc.): Dial w/Black tip needle on white background

Dial (white, mirrored, LCD, LED, Stop pins Etc.): 2.5" Round dial w/ graduations in PSI per order

Window Material, (Glass, Polycarbonate etc.): Clear Polycarbonate

Indication Scale: 134A, R-502, R22 and PSIG

Accuracy: ±1%, -2%, -5% of FS

Calibration (adjustable, Fixed, Etc.): Factory calibrated

Sensor principle (Balanced, Bourdon tube, Capacitive): Bourdon tube

Operating Pressure Ranges: 30" Hg Vacuum to 120 psi (Retard t0 -250 psi)

Overpressure (Burst): 120 psi

Max Operating Pressure (Proof): 250 psi

Operating Temperature: 0° to 120℃ (-40° to 66℉)

Media Temperature: Not given

Operating Humidity: 0 to 95% Non-condensing

Wetted Parts: Brass socket, phosphor bronze

Media Compatibility: Refrigerants and Inert Dry Air

Process Connection: 1/8" MNPT

Mounting: MNPT Process connection

Wiring Terminations (if needed): None required

Enclosure Case Rating: ABS plastic

Enclosure Rating: NEMA 1

Dimensions: Dial Diameter 2.5"

Weight: Not given

Approvals: Not required

Warranty: 1 Year
