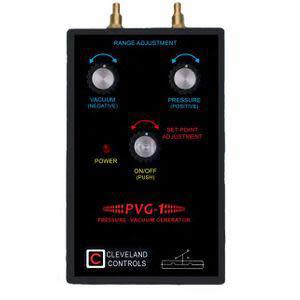

Black handheld device with knobs and brass hose ports for pressure or vacuum.

PVG-1 | Cleveland Controls | Pressure Components

Compact Pressure Vacuum Generator for Field Calibrating +/- .10" to +/- 12" WC

Brand:Cleveland Controls

MPN:PVG-1

SKU:PVG-1

List Price:

$2,025.00

Today's Price:

$1,053.00

product datasheet

catalog page

product specifications

Media Compatibility

Air

Range

±12 in WC

Type

Pressure Pick-Up

product series specifications

Power Requirements: 3 standard AA batteries (Alkaline)

Operating Time (Battery): Minimum 10 hours

Range: ± 0.1" w.c. to ± 12.0" w.c.

Operating Temperature: 50° to 120°F (10° to 49°C)

Connections: Integral slip-on connectors accept 1/8" and ¼" ID flexible tubing

Dimensions:
Housing 3.6" x 5.7" x 1.2" (9.1 x 14.5 x 3.1 cm)
W/ Case 4.3" x 6.8" x 1.8" (10.9 x 17.3 x 4.6 cm)

Weight: < 1 lb

Warranty: 1 year

product series features

Both a vacuum and a pressure source
Has range and fine-tune adjustments
Rugged, protective case with stand included
Flexible tubing kit with in.Y in. fitting included

more information & related documents

Series Description

The Cleveland Controls PVG-1 is a compact pressure or vacuum generator that provides a constant air source ideal for field calibrating differential pressure air flow sensing switches. Set up of the PVG-1 is quick and easy, with separate coarse adjustment valves for initial pressure or vacuum range selection, a fine-tune output adjustment potentiometer and a pushbutton on/off. Use the PVG-1 in conjunction with a manometer and multimeter, which provide indication of the pressure or vaccum level, and the status of the electrical contacts internal to the air switch during calibration.

Kele Description

PRESSURE VACUUM GENERATOR

Manufacturer

Cleveland Controls
