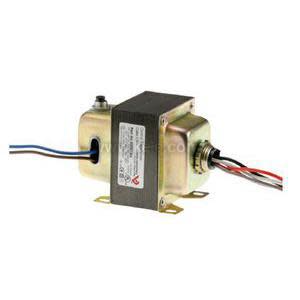

A compact rectangular electrical device with a black core and a gold metal mounting plate, with several colored wires protruding from both ends.

X040ACA | Veris | Power Supplies

277 VAC Primary 24 VAC Secondary Standard Control Transformer with Inherent Protection, 1 Hub and Foot, 40 VA

Brand:Veris

MPN:X040ACA

SKU:X040ACA

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

catalog page

product specifications

VA Rating

40 VA

Termination

Leads

Type

Closed

Over Current Protection

Inherent

Primary Voltage

277 VAC

Secondary Voltage

24 VAC

Application

Power Controller,Powering Sensors,Driving Relays,Driving Digitals I/O Circuits,Voltage Reduction,Magnetic Switches

Mount

Foot,Single Hub

product series specifications

Supply Voltage: 27 to 28 VAC

Frequency: 50/60 Hz

Wire Length: 8.0 (20.3 cm)

Operating Temperature: -40° to 149°F (-40° to 65°C)

Wire Type: UL 1015, 18 AWG (X085AAA, X375DAC have 14 AWG secondary wires)

Approvals: CE, UL File #E222742, RoHS

Warranty: 5 years

product series features

Multi-tap primary connection models
Color-coded lead wires
Manually resettable circuit breaker models
Threaded hub options maximize installation flexibility

more information & related documents

Series Description

Veris X Series Control Transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Kele Description

TRANSFORMER, 40VA, 277 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, INHERENT

Manufacturer

Veris
