AT175F1023/U | Resideo | Power Supplies

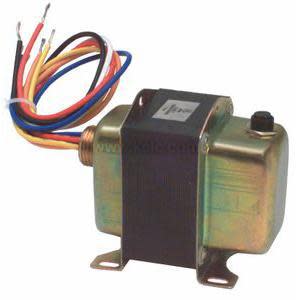

Control transformer, 120/208/240:24 VAC, 75 VA with breaker
Brand:Resideo
MPN:AT175F1023/U
SKU:AT175F1023
List Price:
$252.00
Today's Price:
$131.04
product specifications
Application
Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Mount
Foot, Single Hub Mount
Over Current Protection
Circuit Breaker
Primary Voltage
120 VAC
Secondary Voltage
24 VAC
Termination
Screw Terminal
Type
Closed
VA Rating
75 VA
product series specifications
- Primary Voltage:
- 120/208/240 VAC, 208/277/480 VAC
- Secondary Voltage:
- 24 VAC
- Frequency:
- 60 Hz
- VA Rating:
- AT150F: 50 VA, AT175F:75 VA
- Mounting:
- Foot or hub
- Conduit Connection:
- 1/2" male NPT
- Lead Wires:
- 9" (22.8 cm), color coded
- Weight:
- 3 lb (1.36 Kg)
- Approvals:
- UL1585, UL5085-3 File #E14881, CSA File #LR95329-18 NEC Class 2 "not wet", Class 3 "wet"
- Warranty:
- 1 year
product series features
- Multi-tap primary connections
- Color-coded lead wires
- Manually resettable circuit breaker
- Meets NEC Class 2 in.not wet in. and Class 3 in.wet in. transformer requirements
more information & related documents
Series Description
The Honeywell Model AT150F and AT175F transformers provide power to nominal 24 VAC circuits in heating/cooling systems. Although the transformers are typically used in heating/cooling systems, they can be used in any application that does not exceed the load ratings. The transformers include a manual reset button for resetting the circuit breaker. They also meet NEC Class 2 in. not wet in. and Class 3 in. wet in. requirements and are UL listed under UL1585. These transformers can be foot or hub mounted.
Kele Description
TRANSFORMER, 75VA, 120/208/240 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, CIRCUIT BREAKER
Manufacturer
Resideo
Related Documents
AT150F Installation Instructions
