Y65A13-0 | Johnson Controls | Power Supplies

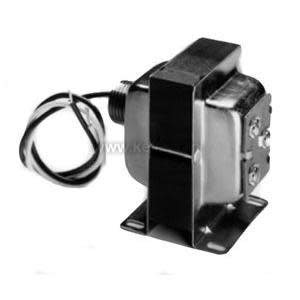

Transformer Class 2 Transformer, Open, 120 VAC Input Voltage
Brand:Johnson Controls
MPN:Y65A13-0
SKU:Y65A13-0
List Price:
$151.00
Today's Price:
$78.52
Log in for customized pricingproduct specifications
VA Rating
40 VA
Termination
Screw Terminal
Type
Closed
Over Current Protection
Circuit Breaker
Primary Voltage
120 VAC
Secondary Voltage
24 VAC
Application
Voltage Reduction,Magnetic Switches,Control Valves
Mount
Foot
product series specifications
Primary Voltage: 120/240 VAC, 50/60 Hz
Secondary Voltage: 24 VAC
VA Rating: 100 VA, 150 VA, 300 VA, 500 VA
Insulation Class: 221°F (105°C)
Terminals: Plated brass binder head screws
Temperature Rise: 131°F (55°C)
Mounting: Slotted feet
Weight: E100E: 4.2 lb (1.9 Kg), E150E: 8.0lb (3.6 Kg), E300E: 11.8 lb (5.4 Kg), E500E: 19 lb (8.6 Kg)
Approvals: UL506, UL5085-1 & 2 listed, File #E77014 CSA certified, File #LR14328-22
product series features
- Precise spacing between interleaved windings for maximized voltage regulation
- Oversized copper windings contribute to low temperature rise
- Solid epoxy-encapsulation to dissipate heat efficiently and completely seal coil against moisture, dirt, and other airborne contaminants
- Ten year warranty
more information & related documents
Series Description
The Model E100E, E150E, E300E, and E500E control transformers are premium performance, epoxy-encapsulated control transformers. They are designed to provide 24 volt AC control voltage from a 120/240 volt AC primary supply. These are used in temperature control systems, industrial applications and building automation systems, BAS. Able to meet high inrush loads while providing outstanding voltage regulation, these control transformers make operation more efficient because it is cooler. Each transformer features simple installation and wiring.
Kele Description
TRANSFORMER, 40VA, 120 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT
Manufacturer
Johnson Controls
Related Documents
E Series, IP20 Datasheet
