TR100VA001US | Functional Devices | Power Supplies

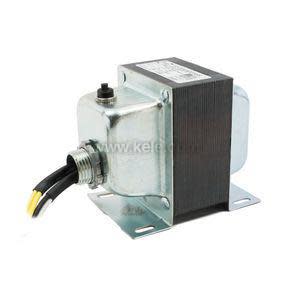

Transformer American-Made 96VA, 120 to 24 Vac, Foot and Single Threaded Hub Mount, Circuit Breaker
Brand:Functional Devices
MPN:TR100VA001US
SKU:TR100VA001US
List Price:
$117.00
Today's Price:
$60.84
product specifications
Application
Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Mount
Foot, Single Hub Mount
Over Current Protection
Circuit Breaker
Primary Voltage
120 VAC
Secondary Voltage
24 VAC
Termination
Leads
Type
Closed
VA Rating
100 VA
product series specifications
- Supply Voltage:
- TR40VA001US:
- 120 VAC
- TR40VA002US:
- 120 VAC
- TR50VA001US:
- 120 VAC
- TR50VA022US:
- 120/208/240/277/480 VAC
- TR50VA005US:
- 120 VAC
- TR100VA001US:
- 120 VAC
- TR100VA002US:
- 120 VAC
- TR100VA004US:
- 120/208/240/277/480 VAC
- Secondary Voltage:
- 24 VAC
- Supply Frequency vA:
- TR40VA001US:
- 40Hz
- TR40VA002US:
- 40Hz
- TR50VA001US:
- 50Hz
- TR50VA022US:
- 50Hz
- TR50VA005US:
- 50Hz
- TR100VA001US:
- 96Hz
- TR100VA002US:
- 96Hz
- TR100VA004US:
- 96Hz
- Transformer Class:
- Class 2
- Over Current Protection:
- TR40VA001US:
- Inherently Limited
- TR40VA002US:
- Inherently Limited
- TR50VA001US:
- 3 Amp Fuse
- TR50VA022US:
- Circuit Breaker
- TR50VA005US:
- Circuit Breaker
- TR100VA001US:
- Circuit Breaker
- TR100VA002US:
- Circuit Breaker
- TR100VA004US:
- Circuit Breaker
- Mounting:
- TR40VA001US:
- Foot & Single Threaded Hub
- TR40VA002US:
- Foot & Dual Threaded Hub
- TR50VA001US:
- Foot & Single Threaded Hub
- TR50VA022US:
- Foot & Dual Threaded Hub
- TR50VA005US:
- Foot & Single Threaded Hub
- TR100VA001US:
- Foot & Single Threaded Hub
- TR100VA002US:
- Foot & Dual Threaded Hub
- TR100VA004US:
- Foot & Dual Threaded Hub
- Ambient Temperature:
- -30 to 140‚Ñâ
- Maufactured:
- USA
- Wiring:
- 8‚Ä= Typical
- Weight:
- TR40VA001US:
- 1.80 lbs
- TR40VA002US:
- 1.80 lbs
- TR50VA001US:
- 2.20 lbs
- TR50VA022US:
- 2.65 lbs
- TR50VA005US:
- 2.60 lbs
- TR100VA001US:
- 3.40 lbs
- TR100VA002US:
- 3.40 lbs
- TR100VA004US:
- 3.60 lbs
- Approvals:
- CE, RoHS, UL File #E197146
- Warranty:
- 1 Year
product series features
- Foot and Hub mounted models available
- Class 2 rated
- Color coded wire leads
more information & related documents
Series Description
The Functional Devices US-made transformers come in 40VA, 50VA, and 96VA options. They are Class 2 and have UL, CE, and cUL approvals. They all feature split bobbin construction. Some also have a secondary circuit breaker.
Kele Description
TRANSFORMER, 100VA, 120 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, CIRCUIT BREAKER
Manufacturer
Functional Devices
