33-050-K | Dongan Electric | Power Supplies

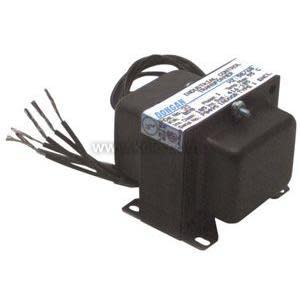

Control Transformer, 120:24V, 50 VA
Brand:Dongan Electric
MPN:33-050-K
SKU:33-050-K
List Price:
$279.13
Today's Price:
$145.15
product specifications
Application
Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Housing Rating
NEMA 1
Mount
Foot, Single Hub Mount
Over Current Protection
Circuit Breaker
Primary Voltage
120 VAC
Secondary Voltage
24 VAC
Termination
Leads
Type
Closed
VA Rating
50 VA
product series specifications
- Primary Voltage:
- 120, 208, 480/240, 277 VAC
- Secondary Voltage:
- 24 VAC, 120 VAC
- Frequency:
- 50/60 Hz
- VA Rating:
- 50 VA, 100 VA
- Insulation Class:
- 221‚Ñâ (105‚ÑÉ)
- Wire Length:
- 8.0" (20.32 cm), labeled
- Temperature Rise:
- 131‚Ñâ (55‚ÑÉ)
- Conduit Connection:
- 1/2" (1.27 cm) male threads
- Mounting:
- Hub or foot, NEMA 1
- Weight :
- 50 VA models:
- 2.7 lb (1.2 kK)
- 100 VA models :
- 4.0 lb (1.8 Kg)
- Approvals:
- UL 506, UL5085-1 & 2 File #E3210 CSA File #LR560
- Warranty:
- 10 years
product series features
- 24 or 120 VAC secondary voltage
- Single hub or foot mounting
- Fully enclosed
- Compact size
- Low cost
more information & related documents
Series Description
The 33 Series 120 VAC secondary transformers are industrial-grade control transformers with 120 volt AC secondary voltage. These transformers are ideal for use in Building Automation Systems, BAS, and temperature control applications.
Kele Description
TRANSFORMER, 50VA, 120 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT
Manufacturer
Dongan Electric
