33-050-HLK | Dongan Electric | Power Supplies

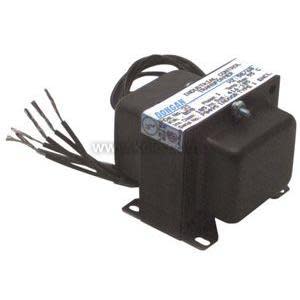

Control Transformer, 480/240:24V, 50 VA
Brand:Dongan Electric
MPN:33-050-HLK
SKU:33-050-HLK
List Price:
$322.35
Today's Price:
$167.62
Log in for customized pricingproduct specifications
VA Rating
50 VA
Termination
Leads
Type
Closed
Over Current Protection
Circuit Breaker
Primary Voltage
240 VAC,480 VAC
Secondary Voltage
24 VAC
Enclosure Rating
NEMA 1
Application
Power Controller,Powering Sensors,Driving Relays,Driving Digitals I/O Circuits,Voltage Reduction,Magnetic Switches
Mount
Foot,Single Hub
product series specifications
Primary Voltage: 120, 208, 480/240, 277 VAC
Secondary Voltage: 24 VAC, 120 VAC
Frequency: 50/60 Hz
VA Rating: 50 VA, 100 VA
Insulation Class: 221°F (105°C)
Wire Length: 8.0" (20.32 cm), labeled
Temperature Rise: 131°F (55°C)
Conduit Connection: 1/2" (1.27 cm) male threads
Mounting: Hub or foot, NEMA 1
Weight:
50 VA models: 2.7 lb (1.2 kg)
100 VA models: 4.0 lb (1.8 kg)
Approvals: UL 506, UL5085-1 & 2 File #E3210 CSA File #LR560
Warranty: 10 years
product series features
- 24 or 120 VAC secondary voltage
- Single hub or foot mounting
- Fully enclosed
- Compact size
- Low cost
more information & related documents
Series Description
The 33 Series 120 VAC secondary transformers are industrial-grade control transformers with 120 volt AC secondary voltage. These transformers are ideal for use in Building Automation Systems, BAS, and temperature control applications.
Kele Description
TRANSFORMER, 50VA, 240/480 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT
Manufacturer
Dongan Electric
Related Documents
33 Series Datasheet
