PS-200-3-A-3-N | MAMAC Systems | Power Supplies
5VDC; 1.5 AMPS;24VAC; NRRW WDTH
Brand:MAMAC Systems
MPN:PS-200-3-A-3-N
SKU:PS-200-3-A-3-N
List Price:
$162.00
Today's Price:
$84.24
Log in for customized pricingproduct specifications
Output Voltage
5 VDC
Primary Voltage Input
24 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
5 VDC
Type
DC Power Supply
Primary Voltage
5 VDC
DC Current Output
1.5 Amps
Mount
Panel
product series specifications
Supply Voltage: 24-29 VAC / 90-130 VAC / 208-240 VDC
Output Voltage: 5.0 to 25.0 VDC
Line Regulation: 0.01%/V
Load Regulation: 0.2% (no load to full load)
Output Current: Model Specific
Current Limit: 130% rated current
Thermal Overload: Internally protected
Inline Fuse: 3AG 1.0/2.0 (In voltage only)
Operating Temperature: -40° to 120°F (-40° to 50°C)
Operating Humidity: 90% non-condensing
Weight:1.5 Amps: 2.5 lb (1.1 Kg), 3.0 Amps: 3.0 lb (1.4 Kg)
Approvals: RoHS, CE
Warranty: 1 year
product series features
- Clean, filtered and regulated DC output
- Easily accessible inline fuse
- Less than 2.0 mV pp ripple
- Two unique chassis for ease of installation in control panels
more information & related documents
Series Description

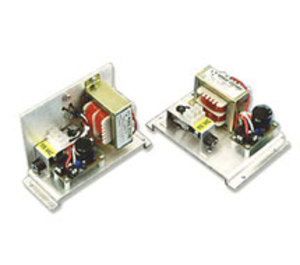

The MAMAC Systems PS-200 power supply accepts a 115, 230 or 24 VAC input and provides a 5 to 25 VDC output that is both fully regulated and protected from short circuiting and thermal overloads. The PS-200 incorporates an inline fuse and terminal strip for the primary line voltage and multiple-position terminal strips for the DC output. Two unique chassis options are available for the PS-200, making it one of the most versatile, reliable, indestructible, easy to install, and stable power supplies in the industry.
Kele Description
5VDC; 1.5 AMPS;24VAC; NRRW WDTH
Manufacturer
MAMAC Systems
Related Documents
Power-Supply-PS200 Datasheet
