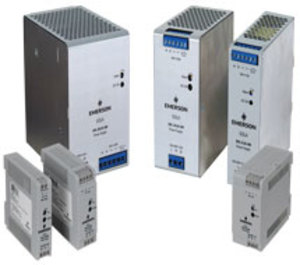

* product series image displayed

SVL2-48-100 | Kele | Power Supplies

120W POWER SUPPLY 2.5A 48V

Brand:Kele

MPN:SVL2-48-100

SKU:SVL2-48-100

List Price:

$258.00

Today's Price:

$134.16

Lead time of 2 days. Chat with Kele experts now

product specifications

Output Voltage

48 VDC

Primary Voltage Input

100-240 VAC

DC Voltage Output Type

Fixed

DC Voltage Output Range

24 VDC

Type

DC Power Supply

Primary Voltage

120 VAC,208 VAC,240 VAC

DC Current Output

2.5 Amps

Mount

DIN rail

product series specifications

Input Voltage Range: 85-264 Vac

AC Range: 100-240 Vac

DC Range: 120-375 Vdc

Inrush Current Max.:

15W: 35 A @ 115 Vac

230 Vac: 65 A @ 230 Vac

48W: 35 A @ 115 Vac

230 Vac: 60 A @ 230 Vac

120W: 20 A typ. @ 115 Vac

230 Vac: 40 A typ. @ 230 Vac

480W: 40 A typ. @ 115 Vac

230 Vac: 80 A typ. @ 230 Vac

Power Factor Correction:

Meets EN61000-3-2 Class A

Active PFC > 0.90

Meets EN61000-3-2 Class A

Active PFC > 0.95

Operating Temperature: -20°C to +70°C (Refer to catalog specs for output derating curves)

Storage Temperature: -40°C to +85°C

Overvoltage Protection: Latch mode, re-power to recover

Overload Protection: Hiccup, auto-recovery

Current foldforward and then hiccup, auto-recovery

105-150% of rated load; constant current and then hiccup, auto-recovery

Over Temperature Protection: No component damage, latch mode, re-power to recover

Short Circuit: Hiccup mode, non-latching, auto-recovery

LED Signals: GREEN light = DC OK, OCP = blinking

product series features

Universal input
Protection
Short Circuit
Over Voltage
Overload
Over Temperature
Power factor correction
Convection cooling
DC OK LED
Blinking OCP Diagnostic
DC OK Relay for 120 Watts models
2 year limited warranty

more information & related documents

Series Description

The Emerson SVL Series Essential Power Supplies are perfect for high volume, controlled environment applications where essential features are the only requirement. When space inside an enclosure is at a premium, their small footprint makes these power supplies an excellent alternative to embedded open frame switchers. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility. These power supplies range from 15 to 480 Watts in 5, 12, 24 and 48 Volt combinations. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

120W POWER SUPPLY 2.5A 48V
