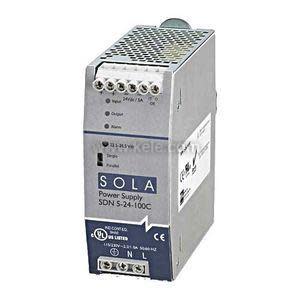

SDN-5-24-100C | Kele | Power Supplies
SDN-C Series Compact DIN Rail Power Supply, Nominal Output Current: 5 A (120 W), Nominal Voltage Input: 115/230 Vac, Nominal Voltage Output: 24 V, Frequency 43/67 Hz, Single Phase
Brand:Kele
MPN:SDN-5-24-100C
SKU:SDN 5-24-100C
List Price:
$1,597.00
Today's Price:
$830.44
Log in for customized pricingproduct specifications
Output Voltage
24 VAC
Primary Voltage Input
115/230 VAC
DC Voltage Output Type
Fixed
DC Voltage Output Range
24 VDC
Type
Enclosed Power Supply
Primary Voltage
120 VAC
DC Current Output
5 Amps
Mount
DIN rail
product series specifications
Supply Voltage:
Single Phase: 115/230 VAC
Three Phase: 380-480 VAC
Output Voltage: 24 VDC
Frequency:
Single Phase: 43-67 Hz
Three Phase: 50-60 Hz
Output Current:
SDN 5-24: 120W, 5A @ 24VDC
SDN 10-24: 240W, 10A @ 24VDC
SDN 20-24: 480W, 20A @ 24VDC
SDN 40-24: 960W, 40A @ 24VDC
Fusing:
Single Phase: Internally fused
Three Phase: Externally fused
LED: Green, Yellow, Red
Connections: Terminals accepting 12-16 AWG wire
Mounting: Din Rail
Operating Temperature: -13° to 140°F (-25° to 60°C)
Operating Humidity: < 90% RH, non-condensing
Approvals: CE, UL File #E234790, SEMI F47, RoHS
Warranty: 5 years
product series features
- Compact packaging to save space on the DIN rail
- Visual diagnostic LEDs for input and output status at a glance
- High efficiency saves energy and lowers amount of heat generated in panel
- PowerBoost™ overload capability to start high inrush loads
more information & related documents
Series Description
The Sola/Hevi-Duty SDN-C Compact Series DIN rail series power supplies are the next generation of the SDN Series. These models combine high efficiency and compact size with new visual diagnostic LEDs to offer the most performance available from SolaHD. These have a patented DIN rail mounting clip and large, rugged accessible screw terminals.
Kele Description
5A (120W) 24V DIN P/S 115/230V INPUT
Manufacturer
Kele
SDN-C Single Phase Specification
