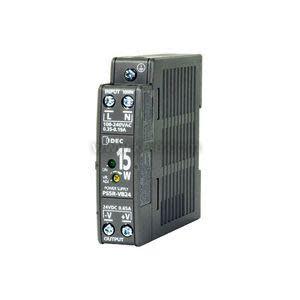

Slim black 15-watt power supply block with ventilation slots and screw terminal labels

PS5R-VB24 | IDEC | Power Supplies

Power Supply Din Rail Mount 15W 24VDC Universal input 85-264VAC;100-370VDC

Brand:IDEC

MPN:PS5R-VB24

SKU:PS5R-VB24

List Price:

$144.73

Today's Price:

$75.26

product datasheet

installation instructions

catalog page

product specifications

Type

DC Power Supply

Primary Voltage

240 VAC

Secondary Voltage

24 VDC

Mount

DIN rail

VA Output

24V

product series specifications

Supply Voltage: 85-264 VAC nominal, 100-370 VDC

Output Voltage: 5, 12 or 24 VDC

Supply Current: 0.65 - 10A

Supply Frequency: 50/60 Hz

Output Current: 10 - 240W

Over Current Protection: 105% auto-reset

Load Regulation: 2.5% maximum

Ripple: 8% max peak to peak (including noise)

Operating Temperature: -13° to 149°F (-25° to 65°C) min.

Operating Humidity: 20% to 90% RH non-condensing

Connections: Spring loaded, finger safe terminals with captive M3.5 screws

Mounting: DIN rail/surface mount

Approvals: CE, CSA, RoHs, UL File #E457154 & E177168

Warranty: 1 year

product series features

Small size to save panel space
DIN rail/surface mount enclosure
Slim-line models to save valuable panel space
High efficiency operation for minimizing heat generation in control panels
Time-saving, spring-loaded screw terminals
One year warranty

more information & related documents

Series Description

The Idec PS5R-V Series of switching and linear power supplies is available with an output of 12 or 24 VDC and output power from 7.5-480W. The output is short circuit protected and regulated. These switching power supplies, which minimize the heat generated in control panels, have a much higher efficiency than linear power supplies. They are small and completely enclosed, and they can be DIN rail or surface mounted.

Kele Description

POWER SUPPLY 15W 24VDC DIN COMPACT SIZE

Manufacturer

IDEC
