PSP24DA | Functional Devices | Power Supplies

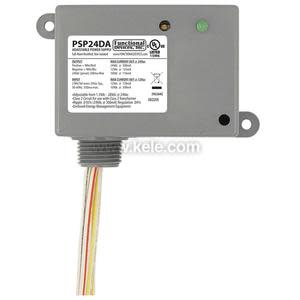

Enclosed Non-Isolated Linear DC Power Supply, 24 Vac to 1.5-28 Vdc Adjustable Output

Brand:Functional Devices

MPN:PSP24DA

SKU:PSP24DA

List Price:

$88.00

Today's Price:

$45.76

product datasheet

installation instructions

catalog page

4 in stock

product specifications

Enclosure Rating

NEMA 1

Mount

Surface

Primary Voltage

24 VAC

Type

Enclosed Power Supply

Primary Voltage Input

24 VAC

DC Voltage Output Type

Adjustable

DC Voltage Output Range

1.5-28 VDC

DC Current Output

300M Amps

product series specifications

Primary Voltage: 120 VAC, 50/60 Hz, 120 VAC, 50/60 Hz (40 VA), 480/277/240/208/120 VAC 50/60 Hz (75VA), 480/277/240/208/120 VAC 50/60 Hz (75 VA), 120 VAC, 50/60 Hz (100 VA)

Input Control: Combination on/off switch and 10A circuit breaker

Convenience Outlet: 120 VAC, 15A maximum.

Secondary Voltage: Class 2

PSH40A: 24 VAC, 40VA

PSH75A: 24 VAC, 75V

PSH100A: 24 VAC, 100V

PSH40A40A: Dual 40 24 VAC, 40 VA

PSH40A75A: Dual 24 VAC, 40VA and 75 VA

PSH40A100A: Dual 24 VAC, 40VA and 100 VA

PSH75A75A: Dual 24 VAC, 75 VA

PSH75A100A: Dual 24 VAC, 75VA and 100VA

PSH100A100A: Dual 24 VAC, 100VA

Note for dual power supplies: Output derating may exceed 20% due to elevated ambient temperature or heat buildup in device over time:

Output Control: Combination of on/off switch and circuit breaker. Controls 24 VAC output only.

Output Indication: Red LED, one for each 24 VAC output

Dimensions:

Single Transformer Models: 4.50"H x 8.25"W x 4.50"D (11.4 x 20.96 x 11.4 cm)

Two Transformer models: 4.50"H x 8.25"W x 4.50"D (11.4 x 20.96 x 11.4 cm)

Approvals: UL listed, Class 2, UL916, File E190394 CUL

Warranty: 1 Year

product series features

One or two transformers in pre-packaged metal enclosure
40, 75 and 100 VA Class 2 transformers
Output switch/circuit breaker and LED indication
Optional primary switch/circuit breaker
Optional 120 VAC convenience outlets
To order UL508 add 1C to the end

more information & related documents

Series Description

The PSH Series Functional Devices enclosed 24 VAC Class 2 power source includes one or two transformers, pre-packaged in a metal enclosure. These are engineered for use in temperature control systems, industrial applications and building automation systems. The transformers are available in 40VA, 75VA and 100VA sizes. A switch and circuit breaker is provided for switching the output of each transformer. An optional switch and circuit breaker is available for controlling power to the entire unit. Other handy features include an LED to indicate the presence of 24 volt AC at the Class 2 output terminals or wires, an internal high-voltage wiring compartment, and two optional 120 volt AC grounded convenience outlets.

Kele Description

GP DC SUPPLY 24VAC INPUT

Manufacturer

Functional Devices
