PSMN40A24DS

PSMN40A24DS | Functional Devices | Power Supplies

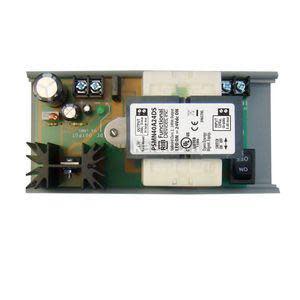

2.75 Track Mount Isolated Linear DC Power Supply, 120 Vac to 24 Vdc, 1 Amp output

Brand:Functional Devices

MPN:PSMN40A24DS

SKU:PSMN40A24DS

List Price:

$137.00

Today's Price:

$71.24



Availability: 28 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
catalog page

product specifications

Mount

Track Mount

Type

DC Power Supply

Primary Voltage Input

120 VAC

DC Voltage Output Type

Fixed

DC Voltage Output Range

24 VDC

DC Current Output

1 Amps

product series specifications

    Input:
  • PSM19: 120 VAC 50/60 Hz 150 mA maximum, PSM24: 24 VAC 50/60 Hz 950 mA maximum, PSMN40: 120 VAC 50/60 Hz 400 mA maximum
    Output Voltage:
  • 24 VDC, adjustable 1.5-28 VDC
    Output Current:
  • PSM24/PSM19: 300 mA @ 24 VDC, 125 mA @ 12 VDC, 116 mA @ 10 VDC, PSMN40A: 1A @ 24 VDC
    Line Regulation:
  • 0.625 mV/V, 8 mV/V
    Load Regulation:
  • 0.04%
    Ripple:
  • 0.0016%, 24 VDC @ 300 mA, 0.0016%, 24 VDC @ 1A
    Operating Temperature:
  • -30° to 140‚Ñâ (-34° to 60‚ÑÉ)
    Mounting:
  • MT212 track (provided)
    Dimensions:
  • PSM24/PSM19: 4"H x 2.75"W x 1.63"D (10.1 x 6.9 x 4.1), PSMN40: 5"H x 2.75"W x 2"D (12.7 x 6.9 x 5.1)
    Approvals:
  • Class 2 UL916 listed, ULC, File #E68805
    Weight:
  • PSM24/PSM19: 1.1 lb (0.49 Kg), PSMN40: 1.5 lb (0.68 Kg)
    Warranty:
  • 1 year

product series features

  • Isolated, regulated 24 VDC output
  • UL Listed for Class 2 circuits
  • On/Off switch
  • LED indication
  • Track mounted
  • Full-wave rectified
  • Class 2 UL916 File #E68805
  • 1 Year warranty

more information & related documents

Series Description

The PSM Series DC power supplies provide an isolated and regulated 24 volt DC output from a voltage input of either 120 volt AC or 24 volt AC. Each power supply model is UL listed for use in Class 2 circuits.

Kele Description

CLASS 2 POWER SUPPLY, 120VAC:24VDC, 1.0A

Manufacturer

Functional Devices

Related Documents

PDF - PSM Series DatasheetPSM Series Datasheet
