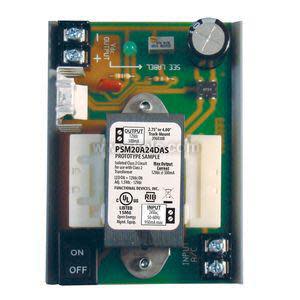

PSM24A24DAS | Functional Devices | Power Supplies
Track Mount Isolated Linear DC Power Supply, 24 Vac to 1.5-28 Vdc, 300mA Adjustable Output
Brand:Functional Devices
MPN:PSM24A24DAS
SKU:PSM24A24DAS
List Price:
$110.00
Today's Price:
$57.20
Availability: 79 In Stock
product specifications
Mount
Track Mount
Type
DC Power Supply
Primary Voltage Input
24 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
28 VDC
DC Current Output
300M Amps
product series specifications
- Input:
- PSM19: 120 VAC 50/60 Hz 150 mA maximum, PSM24: 24 VAC 50/60 Hz 950 mA maximum, PSMN40: 120 VAC 50/60 Hz 400 mA maximum
- Output Voltage:
- 24 VDC, adjustable 1.5-28 VDC
- Output Current:
- PSM24/PSM19: 300 mA @ 24 VDC, 125 mA @ 12 VDC, 116 mA @ 10 VDC, PSMN40A: 1A @ 24 VDC
- Line Regulation:
- 0.625 mV/V, 8 mV/V
- Load Regulation:
- 0.04%
- Ripple:
- 0.0016%, 24 VDC @ 300 mA, 0.0016%, 24 VDC @ 1A
- Operating Temperature:
- -30° to 140‚Ñâ (-34° to 60‚ÑÉ)
- Mounting:
- MT212 track (provided)
- Dimensions:
- PSM24/PSM19: 4"H x 2.75"W x 1.63"D (10.1 x 6.9 x 4.1), PSMN40: 5"H x 2.75"W x 2"D (12.7 x 6.9 x 5.1)
- Approvals:
- Class 2 UL916 listed, ULC, File #E68805
- Weight:
- PSM24/PSM19: 1.1 lb (0.49 Kg), PSMN40: 1.5 lb (0.68 Kg)
- Warranty:
- 1 year
product series features
- Isolated, regulated 24 VDC output
- UL Listed for Class 2 circuits
- On/Off switch
- LED indication
- Track mounted
- Full-wave rectified
- Class 2 UL916 File #E68805
- 1 Year warranty
more information & related documents
Series Description
The PSM Series DC power supplies provide an isolated and regulated 24 volt DC output from a voltage input of either 120 volt AC or 24 volt AC. Each power supply model is UL listed for use in Class 2 circuits.
Kele Description
GP DC SUPPLY 24VAC INPUT
