PSH500A-LVC | Functional Devices | Power Supplies

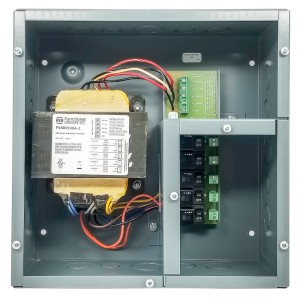

ENCLOSED 500 VA POWER SUPPLY, HIGH/LOW VOLTAGE SEPARATION WITH (5) 100 VA CLASS 2 OUTPUTS, 480/277/24
Brand:Functional Devices
MPN:PSH500A-LVC
SKU:PSH500A-LVC
List Price:
$1,367.00
Today's Price:
$710.84
Log in for customized pricingproduct specifications
VA Rating
500 VA
Output Voltage
24 VAC
Primary Voltage Input
120 VAC
DC Voltage Output Type
Fixed
Type
Enclosed Transformer
Primary Voltage
120 VAC,240 VAC,277 VAC,480 VAC
Mount
Panel
VA Output
500 VA
Secondary Voltage Output
24 VAC
product series specifications
- Supply Voltage:
PSH200A-LVC 480/347/277/240/120 VAC finger-safe terminals, 8-18 AWG
PSH300A-LVC & PSH500A-LVC 480/277/140/120 VAC finger-safe terminals, 8-18 AWG
- Output Voltage:
PSH200A-LVC (5) 24 VAC, with LED indicators
PSH300A-LVC (3) 24 VAC, with LED indicators, 4 Amp breaker for each output
PSH500A-LVC (5) 24 VAC, with LED indicators; 4 Amp breaker for each output
- Frequency: 50/60 Hz
- Transformer:
PSH200A-LVC 200 VA w/ five 40 VA outputs, Transformer
PSH300A-LVC 300 VA w/ three 100 VA outputs
PSH500A-LVC 500 VA w/ five 100 VA outputs
- Over Current Protection: Circuit breaker
- Dimensions: 12.125" x 12.125" x 6.000" (30.798 x 30.798 x 15.240 cm)
- Weight:
PSH200A-LVC 20.30 lbs (9.21 Kg)
PSH300A-LVC 20.18 lbs (9.15 Kg)
PSH500A-LVC 32.30 lbs (14.65 Kg)
- Approvals: CE, RoHS, UL File #E190394
- Warranty: 1 year
product series features
- High/Low voltage separation
- Five isolated 100 VA Class 2 outputs
- Low voltage wiring made easy with plugable terminal blocks for easy access
more information & related documents
Series Description
The Functional Devices PSH-LVC Series of power supplies is a safer alternative to connecting high-voltage power supplies. It has a separate low voltage compartment with a separate cover. The PSH-LVC Series is ideal for VAV applications. When you need the right product, right now, count on Kele.
Kele Description
ENCLOSED LOW VOLTAGE COMPARTMENT 100VAX5 MULTI-TAP 120-480 TO 24VAC UL CLASS 2
Manufacturer
Functional Devices
