* product series image displayed

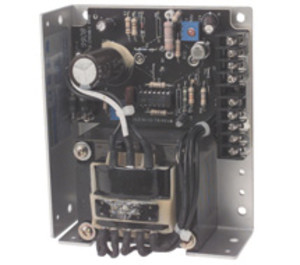

SLS-24-012T | Kele | Power Supplies

24VDC 1.2A POWER SUPPLY

Brand:Kele

MPN:SLS-24-012T

SKU:SLS-24-012T

List Price:

$427.00

Today's Price:

$222.04

catalog page

product specifications

Output Voltage

24 VDC

Primary Voltage Input

120 VAC

DC Voltage Output Type

Adjustable

DC Voltage Output Range

24 VDC

Type

DC Power Supply

Primary Voltage

120 VAC,220 VAC,230 VAC,240 VAC

DC Current Output

1.2 Amps

Supply Voltage (Nominal)

120 VAC,240 VAC

product series specifications

Supply Voltage: 120, 220, 230, 240 VAC ± 10%

Output Voltage: 12 VDC, Adjustable ±5%; 24 VDC, Adjustable ±5%

Supply Frequency: 47-63 Hz

Output Current: 1.7A, 1.2A, 2.4A, 3.6A, 4.8A, 7.2A

Line Regulation: ± 0.05% for 10% line change

Load Regulation: 5% for 50% load change

Ripple: 3 mV p-p maximum

Wiring Terminations: Screw terminals, input and output 16-gauge wire maximum

Remote Sensing: 0.5VDC Auto-Adjust

Operating Temperature: 32° to 122°F (0° to 50°C)

Approvals: UL1310, UL, File #E137632: CE, CSA

Warranty: 1 year

product series features

Screw terminal connections, no soldering
Multiple input voltages
Regulated 24 VDC output up to 7.2A
Remote sensing
Transformer isolated
Non-Switching regulation

more information & related documents

Series Description

The Sola/Hevi-Duty SLS Series of DC power supplies from Sola/Hevi-Duty are used to transform various AC voltage inputs into a regulated DC output. Multiple mounting surfaces simplify installation by providing different mounting options. Units have built-in remote sensing capability for better load regulation.

Kele Description

24VDC 1.2A POWER SUPPLY

Manufacturer

Kele
