T-PB-303-0 | Air Products | Power Supplies
Power supply 72VA, 24VAC @ 3.0A, Class II, chassis for panel mount
Brand:Air Products
MPN:T-PB-303-0
SKU:T-PB303-0
List Price:
$408.00
Today's Price:
$212.16
Log in for customized pricingproduct specifications
VA Rating
72 VA
Output Voltage
24 VAC
Primary Voltage Input
115 VAC
DC Voltage Output Type
Fixed
Type
Enclosed Transformer
Over Current Protection
Circuit Breaker
Primary Voltage
115 VAC
Mount
Panel
VA Output
72 VA
Secondary Voltage Output
24 VAC
product series specifications
Supply Voltage: 115 VAC, 60Hz
Output Voltage: 24 VAC
Supply Current: 6 A maximum
Convenience Outlet: 115 VAC, 5 A
Indication: Green LED, 24 VAC, Power-Available
Controls: 24 VAC Output, On/Off Switch
Output Current/VA Rating:
T-PB202: 4.0 A, 96 VA (Class 1)
T-PB303: 3.0 A, 72 VA (Class 2)
Current Protection: 4 A Circuit breaker (Resetable)
Operating Temperature: -13° to 140°F (-25° to 60°C)
Mounting: Panel mount, Enclosed
Enclosure Rating: NEMA1, with Outlet-Controls Cover
Dimensions:
Panel mount: 4.75"H x 5.0"W x 3.75"D (12.1 x 12.7 x 9.5 cm)
Enclosed: 6.12"H x 5.19"W x 4.12"D (15.5 x 13.2 x 10.5 cm)
Weight: 5.5 lb (2.65 Kg)
Approvals: UL File #E160579
Warranty: 1 year
product series features
- Enclosed and panel-mounted models
- On/Off switch
- Convenience outlet, non-switched
- Circuit breaker
- Enclosure with removable access panel to on/off switch, breaker, and outlet
more information & related documents
Series Description

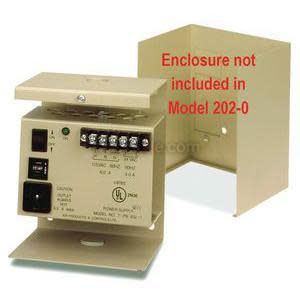

The Air Products and Controls T-PB Series power source provides 24 VAC from a 115 VAC input. Each T-PB Series unit contains an LED that illuminates when the 24 VAC output is operational. An on/off switch is provided in the 115 VAC input. This switch disconnects or connects both the hot and neutral of the input power. A convenience outlet is located on the front panel. This convenience outlet is not controlled by the on/off switch and is always hot. A circuit breaker is incorporated in the 24 VAC circuit, which must be manually reset if the rated 3.0A (Class 2) or 4.0A (Class 1) is exceeded and the breaker operates.The T-PB Series is available in a metal enclosure (UL Listed) for field applications or without the enclosure (UL Recognized) for panel mounting.
Kele Description
24VAC POWER SOURCE,3A,PNL
Manufacturer
Air Products
Related Documents
T-PB Series Datasheet
