1SVR427032R1000 | ABB | Power Supplies

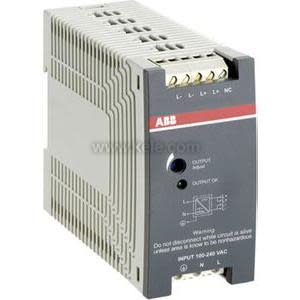

CP-E 12/2.5 Power supply In:100-240VAC Out: 12VDC/2.5A
Brand:ABB
MPN:1SVR427032R1000
SKU:1SVR427032R1000
List Price:
$347.00
Today's Price:
$180.44
Log in for customized pricingproduct specifications
LCD
LED
Primary Voltage Input
100-240 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
24 VDC
Type
Enclosed Power Supply
Over Current Protection
Fuse
Primary Voltage
120 VAC
DC Current Output
12/2.5 Amps
Application
Building Automation System,HVAC,BAS
Current Output
2.50 A
Mount
DIN rail
product series specifications
Supply Voltage: 100-240 V AC
Output Voltage: 24 V DC
Frequency: 47-63 Hz
Tolerance of the Output Voltage: 0...+1%
Power Dissipation: typ. 4.45 W
Efficiency: typ. 77%
Duty Time: 100%
Mounting: DIN rail (IEC/EN 60715), snap-on without any tool
Mounting Position: Horizontal
Dimensions: 0.89H × 3.64D × 4.49W (22.5H x 90D x 114W mm)
Weight: 0.315 lbs (0.143 KG)
Approvals: UL 508, CAN/CSA C22.2 No 107.1
Approvals: UL 1310, CAN/CSA C22.2 No. 223 (Class 2 Power Supply)
Approvals: ANSI/ISA - 12.12, CAN/CSA C22.2 No. 213 (Class 1, Div. 2 Hazardous locations)
Approvals: UL 60950, CAN/CSA C22.2 No. 60950
Approvals: EAC, CCC, CE RCM
product series features
- Rated output voltage 24 V DC
- Output voltage adjustable via front-face rotary potentiometer in.OUTPUT Adjust in.
- Rated output current 0.75 A
- Rated output power 18 W
- Wide range input 100-240 VAC (90-264 VAC, 120-375 V DC)
- Typical efficiency of 77%
- Low power dissipation and low heating
- Free convection cooling (no forced cooling with ventilators)
- Open-circuit, overload and short-circuit stable
- Integrated input fuse
- LEDs for status indication
more information & related documents
Series Description
The ABB CP-E Series range offers enhanced functionality while the number of different types has been considerably reduced. Now all power supply units can be operated at an ambient temperature of up to +70 degrees.
Kele Description
CP-E 12VDC/2.5A POWER SUPPLY
Manufacturer
ABB
CP-E 24 0.75 Data Sheet
