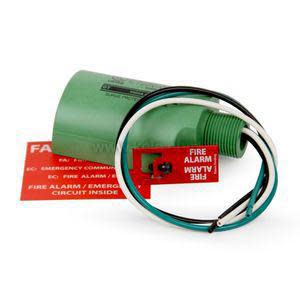

Green fire alarm module with colored wires and red warning tags

E120V-GT | Space Age Electronics | Power Monitoring & Protection

120V Hybrid Surge Protector, 5000A Breaker, Lock Kit

Brand:Space Age Electronics

MPN:E120V-GT

SKU:E120V-GT

List Price:

$152.15

Today's Price:

$79.12

product datasheet

installation instructions

catalog page

product specifications

Indication

LED

Operating Voltage

120 VAC

Type

120V

Number of Circuits

Mount

Hub

product series specifications

Service Voltage: 120 Single Phase

Max. Operating Voltage: 230 Volts RMS

Energy Dissipation: 500 Joules

Maximum Surge Current:25,000 Amps

Clamping Response Time: <5 nano seconds

Circuits Protected: L-N L-G N-G

Capacitance: <2000 pf

Current: Non-load bearing

Operating Temperature: -40° to 185°F (-40° to 85°C)

Enclosure Material: UL94 QMFZ2/8 (green)

Connection Type: Hardwired

Installation Configuration: Parallel

Design: Thermally fused hybrid

Operation Indicator: LED

Short Circuit Current Rating: 5KA

Survivability: UL rated X2 @5000 Amps to open series external circuit breaker

Dimensions: 4.4" x 2.6" W x 1.5" (11.2 x 6.6 x 3.8 cm)

Approvals: UL File #E319370

Weight: 0.33 lb (0.15 kg)

Warranty: 1 year

product series features

UL 1449 3rd Edition Type 2 and 3
Surface or conduit mounting
Diagnostic indicator light
Self restoring
2 Wire device (18 in length)

more information & related documents

Series Description

The E120 series hybrid surge protector is an ideal solution to protect equipment with 120 VAC applications. It has the robustness not only to absorb a spike, but to clamp long enough to trip the branch circuit breaker and still be functional for additional surges. It reduces system downtime associated with power surges and lighting strikes, prevents destruction and degradation of electrical components in the system.

Kele Description

120V HYBRID SURGE PROTECTOR,5000A BREAKER,LOCK KIT

Manufacturer

Space Age Electronics
