E120V

E120V | Space Age Electronics | Power Monitoring & Protection

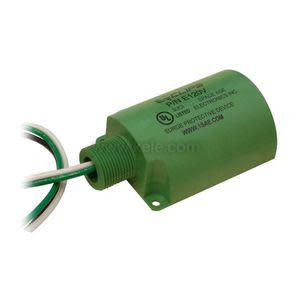

120V Hybrid Surge Protector

Brand:Space Age Electronics

MPN:E120V

SKU:E120V

List Price:

$102.52

Today's Price:

$53.31



Availability: 4 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Indication

LED

Mounting

Hub

Number of Circuits

1

Operating Voltage

120 V

product series specifications

    Service Voltage:
  • 120 Single Phase
    Max. Operating Voltage:
  • 230 Volts RMS
    Energy Dissipation:
  • 500 Joules
    Maximum Surge Current:
  • 25,000 Amps
    Clamping Response Time:
  • <5 nanoseconds
    Circuits Protected:
  • L-N L-G N-G
    Capacitance:
  • <2000 pf
    Current:
  • Non-load bearing
    Operating Temperature:
  • -40° to 185‚Ñâ (-40° to 85‚ÑÉ)
    Enclosure Material:
  • UL94 QMFZ2/8 (green)
    Connection Type:
  • Hardwired
    Installation Configuration:
  • Parallel
    Design:
  • Thermally fused hybrid
    Operation Indicator:
  • LED
    Short Circuit Current Rating:
  • 5KA
    Surviveability:
  • UL rated X2 @5000 Amps to open series external circuit breaker
    Dimensions:
  • 4.4‚Ä=H x 2.6‚Ä=W x 1.5‚Ä=D (11.2 x 6.6 x 3.8 cm)
    Approvals:
  • UL File #E319370
    Weight:
  • 0.33 lb (0.15 kg)
    Warranty:
  • 1 year

product series features

  • UL 1449 3rd Edition Type 2 and 3
  • Surface or conduit mounting
  • Diagnostic indicator light
  • Self restoring
  • 2 Wire device (18 in length)

more information & related documents

Series Description

The E120 series hybrid surge protector is an ideal solution to protect equipment with 120 VAC applications. It has the robustness not only to absorb a spike, but to clamp long enough to trip the branch circuit breaker and still be functional for additional surges. It reduces system downtime associated with power surges and lighting strikes, prevents destruction and degradation of electrical components in the system.

Kele Description

120V HYBRID SURGE PROTECTOR

Manufacturer

Space Age Electronics
