T1SPD | Kenick | Power Monitoring & Protection

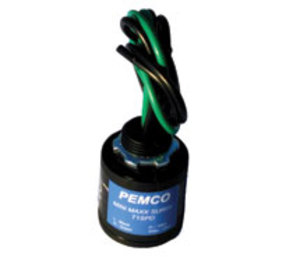

SURGE PROTECTOR, TYPE 1 120/240V, SINGLE PHASE

Brand:Kenick

MPN:T1SPD

SKU:T1SPD

List Price:

$275.00

Today's Price:

$143.00

Lead time of 7 days. Chat with Kele experts now

product specifications

Operating Voltage

120/240 V

Number of Circuits

Mount

Hub

product series specifications

Nominal System Voltage: 120 or 240V

MCOV Rating: 150 VAC

Protection Mode: 400V L-N, 400 L-G

Failure Indicator: LED

Frequency: 0-100Hz

Short Circuit Current Ratings (SCCR): 200 kAIC

Nominal Discharge Current (In): 25kA 8/20

One-Time Surge: 57 kAIC

Protection Modes: L-N / L-L

Status Indication: Green LED

Technology: Gas tube

Certifications: UL 1449 4th Edition

product series features

First line of defense against surges
Great value
Easy to install
Type 1 rated

more information & related documents

Series Description

The MiniMaxx T1-SPD is an easy to install surge protector that meets all applicable electric codes. It is used for 120/240 electrical services and can be used in pairs for 240 V Delta 3 phase and 120/208 Wye 3 phase services. This allows installations on the line or load side (Type 1 or Type 2) of the service panel in accordance with the NEC® 2017 without the requirement for additional circuit breakers or fuses. The T1-SPD is rated to handle surges 25% higher than the average lightning strike so it will work reliably for years. The T1-SPD design prevents failure due to open neutrals or other system disturbances. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

SURGE PROTECTOR, TYPE 1 120/240V, SINGLE PHASE

Manufacturer

Kenick
